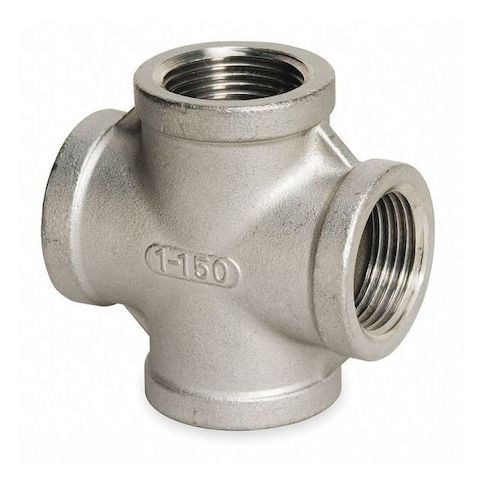

1-1/4 in FNPT Stainless Steel Cross, Class 150, 304 Grade MPN:4381033860

• The ZORO SELECT 4381033860 is a stainless steel pipe fitting classified as a "Cross," featuring four openings arranged at 90° in one plane. Designed to join or split flow among four pipe runs, this cross is intended for use in systems requiring four-way cross connections with FNPT threaded ends

• rated for maximum 300 psi at 150°F. Constructed from 304 stainless steel, with a Class 150 pressure rating, rated for a maximum working pressure of 300 psi at 150°F. The fitting has FNPT connection types on all four ends, each with a nominal pipe size of 1 1/4 inches, and an outside diameter of 2-3/32 inches. Designed for four-line cross configurations with FNPT threaded connections
• rated for a maximum steam pressure of 150 psi.

  Key Features:

  • - Material: 304 Stainless Steel, conforming to ASTM-A-351 standards
  • - Fitting Shape: Cross (four-way connection at 90°)
  • - Connection Type: FNPT on all four ends
  • - Nominal Pipe Size: 1 1/4 in for each connection
  • - Pressure Ratings: Class 150
  • Max pressure 300 psi
  • Max steam pressure 150 psi
  • - Outside Diameter: 2-3/32 in
  • - Overall Length: 3 7/16 in
  • - Fitting Schedule/Rating: Class 150
  • - Standards: Meets MSS-SP-114, ASTM A182, ANSI/ASME B1.20.1
  • - Color: Silver
