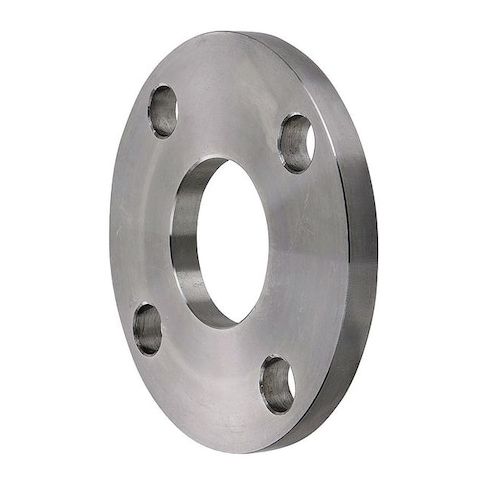

1-1/2" Lap Joint SS Lap Joint Flange MPN:4381005220
The 1-1/2in Lap Joint SS Lap Joint Flange is a versatile and reliable component for piping systems. Its unique design allows for rotation, making it ideal for applications where frequent dismantling or alignment flexibility is required. Constructed from forged 316 stainless steel, this flange is rated for operation up to 720 psi and steam service up to 300 psi. Suitable for use in chemical processing, oil and gas, and power generation industries, this flange provides a secure and leak-free connection, ensuring efficient and safe fluid transfer. Its compact size and lightweight design also make it easy to handle and install.
Top product features:
- Forged 316 stainless steel construction for corrosion resistance and durability
- Allows rotation for bolt-hole alignment, enabling easy installation and flexibility in piping systems
- Rated for operation up to 720 psi and steam service up to 300 psi, providing reliable performance in high-pressure applications
Top product applications:
- Frequent dismantling or alignment flexibility is required
- Steam service up to 300 psi
- Piping systems with rotation for bolt-hole alignment
A ZORO SELECT 4381005220 is a stainless steel lap joint flange used in piping systems. Its design allows it to fit over a matching stub end, allowing rotation for bolt-hole alignment. This type of flange is typically used where frequent dismantling or alignment flexibility is required, with only the stub end contacting the fluid. The flange is constructed from forged 316 stainless steel and rated for operation up to 720 psi and steam service up to 300 psi.
Key Features:
- - Material: Forged 316 Stainless Steel
- - Connection Surface: Lap Joint, allows rotation for bolt-hole alignment
- - Bolt Circle Diameter: 4 1/2 in for bolt hole positioning
- - Bolt Hole Diameter: 7/8 in for fastener compatibility
- - Flange Outside Diameter: 6 1/16 in
- - Flange Thickness: 3/4 in
- - Overall Length: 1 3/16 in
- - Nominal Pipe Size: 1 1/2 in
- - Number of Bolt Holes: 4 for securing the flange
- - Fitting Schedule/Class: Class 300 for pressure rating
- - Standards: ASTM-SA182, ANSI B16.5
Additional Information
- Country of Origin: KR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.20
- Package Width: 6.20
- Package Height: 1.20
- Package Weight: 5.71
