3/4" FNPT SS Threaded Flange MPN:4381004410
Elevate your piping system with the ZORO SELECT 4381004410, a premium 3/4in FNPT SS Threaded Flange designed for maximum performance and durability. Ideal for use in high-pressure applications, this forged 304/304L stainless steel flange provides a reliable connection surface and can withstand operating pressures of up to 720 psi. Suitable for steam and other industrial applications, this flange conforms to rigorous ASTM, ANSI, and ASME standards, ensuring a safe and efficient connection. Perfect for use in chemical processing, oil and gas, and power generation industries, this flange is built to last and deliver exceptional performance in demanding environments.
Top product features:
- Forged 304/304L Stainless Steel construction provides durability and resistance to corrosion.
- Female National Pipe Thread (FNPT) connection allows for secure and leak-free attachment to pipes without the need for welding.
- Raised Face connection surface enables easy and secure bolted connections to other flanges.
Top product applications:
- Industrial piping systems
- Steam power generation
- Chemical processing plants

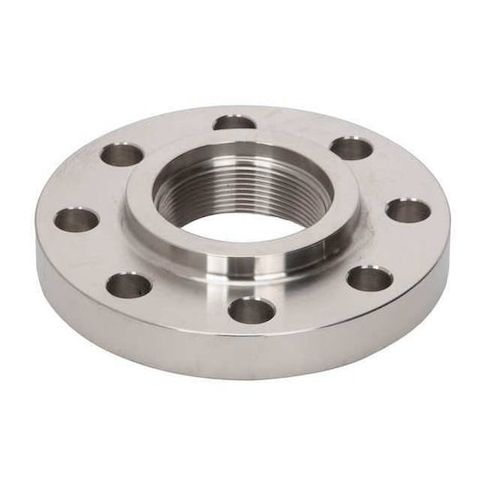

The ZORO SELECT - 4381004410 is a forged threaded flange made of 304/304L stainless steel, designed to connect pipes via internal threads without the need for welding. It features a raised face connection surface and is sized for a 3/4 in nominal pipe size. Bolted connections rated for Class 300 pressure
- maximum operating pressure 720 psi
- steam pressure 300 psi. Conforms to ASTM-SA182, ANSI B16.5, ASME B1.20.1 standards.
Key Features:
- - Material: Forged 304/304L Stainless Steel
- - Connection Type: Female National Pipe Thread (FNPT)
- - Pressure Class: Class 300
- - Nominal Pipe Size: 3/4 in
- - Flange Outside Diameter: 4 5/8 in
- - Bolt Circle Diameter: 3 1/4 in
- - Number of Bolt Holes: 4, each with a 3/4 in diameter
- - Flange Thickness: 9/16 in
- - Overall Length: 1 in
- - Connection Surface: Raised Face
- - Pressure Ratings: Maximum operating pressure 720 psi
- maximum steam pressure 300 psi
- - Conforms to ASTM-SA182, ANSI B16.5, ASME B1.20.1 standards
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 5.50
- Package Height: 1.10
- Package Weight: 2.75
