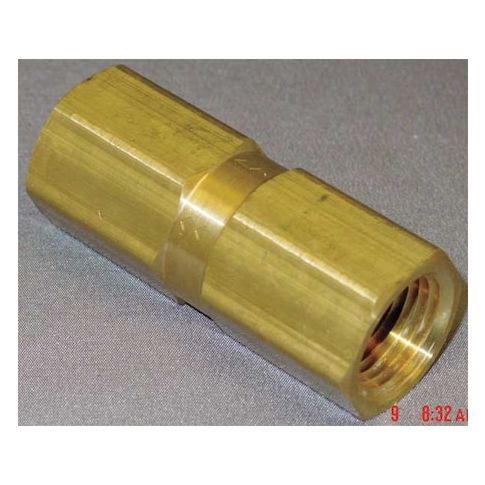

1/2" FNPT Brass Piston Spring Check Valve MPN:CHK BRS 815-8F8F-B
Free Shipping
In Stock
This 1/2in FNPT Brass Piston Spring Check Valve from GoVets Select is a reliable and versatile solution for various applications. Ideal for use in water supply lines, irrigation systems, and industrial processes, this valve ensures full flow while preventing backflow and contamination. Its durable construction with brass body and stainless steel spring ensures long-lasting performance, withstanding temperatures from -20 to 180 degrees Fahrenheit and pressures up to 500 psi. Perfect for use in horizontal or vertical orientations, this valve is a great addition to any system requiring efficient and secure flow control.
Top product features:
- Inline piston design allows for smooth flow and reduced pressure drop.
- Buna-N seal provides a reliable and durable seal at high and low temperatures.
- Stainless steel spring ensures long-lasting and corrosion-resistant valve operation.
Top product applications:
- Drainback Cooling Systems
- Water Treatment Plants
- Automated Irrigation Systems
GoVets Select 815 series piston spring check valve with an inline, single-flow design, brass body, and 1/2 in FNPT x FNPT connections. It uses a spring-loaded brass piston to allow flow in one direction and close when flow slows or reverses. For general purpose air and fluid service, it can be mounted horizontally or vertically.
Key Features:
- - Inline piston spring check design for one-way flow control
- - 1/2 in female NPT x female NPT connections
- - Brass body, brass check mechanism, brass seat, stainless steel spring, and Buna-N seal
- - 1 psi cracking pressure
- - 500 psi maximum operating pressure and maximum water pressure
- 1200 psi maximum pressure
- - Operating temperature range: -20 degrees F to 180 degrees F
- - Dimensions: 2.55 in overall length, 1 in overall height, 1 in overall width, and 1 in hex size
- - UL and UR standards
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 5.50
- Package Height: 1.00
- Package Weight: 1.87
