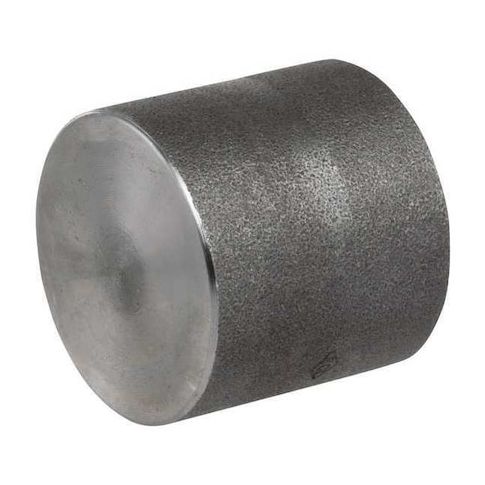

3/4 in FNPT 304 Stainless Steel Cap, Class 3000, ASTM A182, ANSI B16.11 MPN:2UA46
Free Shipping
In Stock
The ZORO SELECT - 2UA46 3/4-inch stainless steel pipe cap is a reliable and durable solution for secure connections in piping systems. Constructed from corrosion-resistant 304 stainless steel, it provides a secure female national pipe thread (FNPT) connection for removable installation. Rated for pressures up to 3000 psi at 100°F and suitable for steam pressures up to 2500 psi at 350°F, this cap is ideal for use in a variety of applications, including industrial process piping, HVAC systems, and chemical processing. Its compliance with ASTM A-182, ANSI/ASME B1.20.1, and ASME B16.11 standards ensures a high level of performance and safety.
Top product features:
- The cap provides a secure connection for piping systems due to its female national pipe thread (FNPT) connection type.
- It is constructed from corrosion-resistant 304 stainless steel suitable for use in specified conditions.
- This cap is designed to meet relevant dimensional and pressure standards, including ASME B16.11, ensuring it can operate at pressures up to 3000 psi at 100°F.
Top product applications:
- Steam Power Systems
- High-Temperature Pipe Systems
- Industrial Piping Applications
The ZORO SELECT - 2UA46 is a 3/4-inch stainless steel pipe cap that provides a secure connection and complies with specified pressure ratings. It is rated for use in piping systems within specified pressure and temperature ranges. Constructed from corrosion-resistant materials suitable for specified conditions, this cap features a female national pipe thread (FNPT) connection type for removable installation. It is rated for operation at pressures up to 3000 psi at 100°F and is suitable for steam pressures up to 2500 psi at 350°F within specified conditions. Made from 304 stainless steel, this cap conforms to ASTM A-182 for material, ANSI/ASME B1.20.1 for threads, and meets ASME B16.11 standards, designed to meet relevant dimensional and pressure standards.
Key Features:
- - Material: 304 Stainless Steel
- - Nominal Pipe Size: 3/4 inch
- - Connection Type: Female National Pipe Thread (FNPT)
- - Pressure Rating: Class 3000 (3000 psi @ 100°F)
- - Max. Steam Pressure: 2500 psi @ 350°F
- - Compliance: ASTM A-182
- ANSI/ASME B1.20.1
- ASME B16.11
- - Does not include pre-applied thread sealant or additional seals
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.38
- Package Width: 1.38
- Package Height: 1.46
- Package Weight: 1.76
