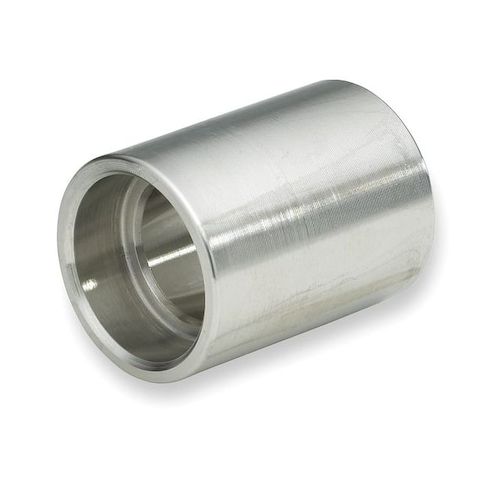

1 in 304L Stainless Steel Socket Weld Coupling, Class 3000, Full Coupling MPN:4307004268

The ZORO SELECT - 4307004268 is a full coupling stainless steel pipe fitting used to join two pipes or tubes of 1 inch nominal size in a straight line, creating a continuous flow path. Constructed from 304L stainless steel, this coupling features socket weld connections with female gender on both ends. It conforms to industry standards including ISO 9001:2008, ASTM A182, and ASME B16.11. The fitting is rated for use in systems with a maximum pressure of 2,570 psi at 100°F and maximum steam pressure of 1,965 psi at 350°F.

Key Features:

• - Material: 304L stainless steel
• - Type: Full coupling with socket weld connections on both ends
• - Nominal pipe size: 1 inch for both connections
• - Connection gender: Female on both sides
• - Pressure rating: conforms to Class 3000, rated for internal pressures up to 2,570 psi at 100°F
• - Maximum steam pressure: rated for steam pressures up to 1,965 psi at 350°F
• - Overall length: 1.5 inches
• - Outside diameter: 1-13/16 inches
• - Color: Silver
• - Standards: ISO 9001:2008, ASTM A182, ASME B16.11
