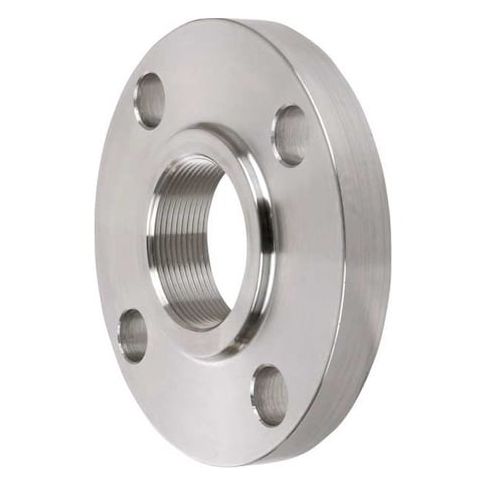

1/2" FNPT SS Threaded Flange MPN:4381002630
Free Shipping
In Stock
The ZORO SELECT stainless steel flange is designed for use with pipes, valves, pumps, and equipment to create secure and reliable bolted connections. Made from 316 stainless steel, this flange offers excellent corrosion resistance and durability. Its raised face connection surface and female National Pipe Thread (FNPT) fitting connection type make it easy to install and use. Ideal for applications in extreme temperatures, from -60 to 450 degrees Fahrenheit, and high-pressure environments up to 150 psi. Suitable for use in a variety of industries, including chemical processing, oil and gas, and food and beverage processing.
Top product features:
- 316 stainless steel construction provides corrosion resistance and durability.
- Raised Face surface connection allows for easy bolt-on connections.
- Female NPT (FNPT) thread connection enables secure and leak-resistant pipe connections.
Top product applications:
- Pipe connections
- Valve connections
- Pump connections
The ZORO SELECT - 4381002630 is a stainless steel flange designed for use with pipes, valves, pumps, and equipment to create bolted connections. Made from 316 stainless steel, this flange features a raised face connection surface and a female National Pipe Thread (FNPT) fitting connection type. It is rated as Class 150, supporting a maximum operating pressure of 150 psi, and can operate within a temperature range from -60 to 450 degrees Fahrenheit. Its nominal pipe size and thread size are 1/2 inch, and it complies with ANSI B16.5 and ASTM A182 standards. Key Features:
- - Material: 316 stainless steel.
- - Flange Outside Diameter: 3 1/2 inches.
- - Connection Surface: Raised Face surface.
- - Fitting Connection Type: Female NPT (FNPT) thread.
- - Pressure Rating: Class 150, with a maximum operating pressure of 150 psi.
- - Temperature Range: -60 Degrees to 450 Degrees Fahrenheit.
- - Bolt hole count: 4.
- - Nominal Pipe Size/Thread Size: 1/2 inch.
- - Standards: ANSI B16.5 and ASTM A182 compliance.
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 3.50
- Package Height: 0.62
- Package Weight: 0.88
