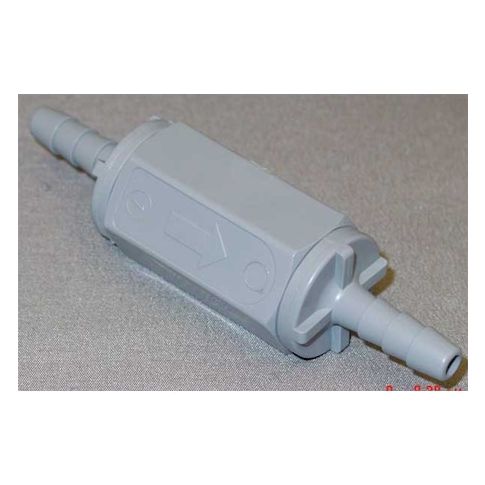

1/4" Barb Gray PVC Ball Cone Spring Check Valve MPN:PVC CHK 426-4B4B-F
Free Shipping
In Stock
The 1/4in Barb Gray PVC Ball Cone Spring Check Valve from GoVets Select is a reliable and efficient solution for various applications. Its single flow design allows for full flow, making it ideal for use in water treatment, irrigation, and other fluid transfer systems. The valve's inline ball cone mechanism ensures smooth operation, while the stainless steel spring and Viton seal provide durability and resistance to corrosion. With a cracking pressure of 1 psi, this valve is suitable for use in a wide range of temperatures and pressures, making it a versatile choice for industrial and commercial applications.
Top product features:
- Flow design is single
- Body and mechanism design is inline ball cone
- Full flow is yes
Top product applications:
- Water supply systems
- Steam trap systems
- Hydraulic systems
ZORO SELECT 426-4B4B-F is an inline ball cone spring check valve with 1/4 in barb x barb connections. It has a PVC body and seat and uses a spring-loaded ball mechanism configured for one-way flow and closure when flow stops or reverses. This valve is intended for use with compatible chemicals within the specified material, pressure, and temperature ratings. It features an inline design with dimensions of 3.53 in L x 1 in H x 1 in W.
Key Features:
- Valve type: Inline ball cone spring check valve with ball check mechanism
- Connection size: 1/4 in on both sides
- Connection type: Barb x barb for use with compatible tubing
- Body and seat material: PVC
- Check mechanism material: Stainless steel
- Seal materials: Viton/FKM and PTFE
- Spring material: Hastelloy
- check valve spring material: stainless steel
- Cracking pressure: 1 psi
- Maximum operating pressure: 125 psi
- Temperature range: -20 degrees F to 140 degrees F
- Mounting orientation: Horizontal or vertical
- Overall dimensions: 3.53 in L x 1 in H x 1 in W
- Standard: NSF 42
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 5.00
- Package Height: 1.10
- Package Weight: 0.29
