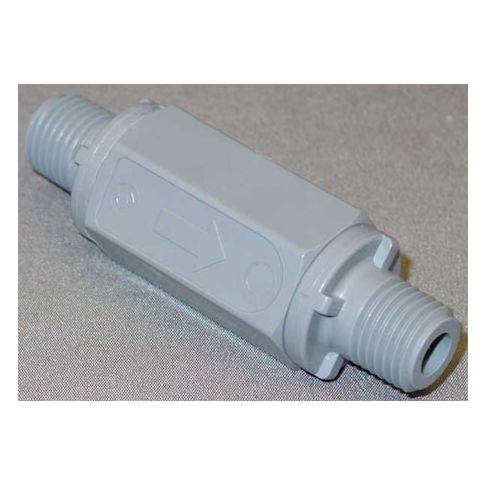

1/4" MNPT Gray PVC Ball Cone Spring Check Valve MPN:PVC CHK 426-4M4M-F
Free Shipping
In Stock
The GoVets Select 1/4in MNPT Gray PVC Ball Cone Spring Check Valve is a reliable and efficient solution for various applications. Suitable for use in horizontal or vertical orientations, this valve ensures one-way flow and prevents backflow, making it ideal for water supply systems, irrigation, and industrial processes. Its PVC body and Viton seal provide excellent chemical resistance and durability, while the stainless steel spring ensures long-lasting performance. With a cracking pressure of 1 psi and maximum water pressure of 125 psi, this valve meets the demands of various industries, including HVAC, plumbing, and chemical processing.
Top product features:
- Has a single flow design to minimize pressure drop and ensure efficient fluid flow
- Is an inline ball cone check valve to prevent backflow and ensure fluid directionality
- Has a cracking pressure of 1 psi to ensure reliable shut-off and prevent fluid leakage
Top product applications:
- Water supply systems
- Drainage systems
- Hydronic heating and cooling systems
ZORO SELECT Series 426 ball cone spring check valve is an inline check valve intended for inline, single-direction flow applications with a ball check mechanism. It features a PVC body for use in general purpose chemical service applications compatible with the listed valve materials. This valve has 1/4 in male NPT connections on both ends, a 1 psi cracking pressure, and a full-flow design.
Key Features:
- Valve type: Ball cone spring check valve with inline body design
- Body material: PVC
- Check mechanism: Ball
- Check mechanism material: Stainless steel
- Connection size and type: 1/4 in MNPT x MNPT
- Pressure rating: 125 psi maximum operating and water pressure
- Cracking pressure: 1 psi
- Temperature range: -20 degrees F to 140 degrees F
- Seal materials: Viton/FKM and PTFE
- Seat material: PVC
- Spring material: Hastelloy
- Mounting orientation: Horizontal or vertical
- Standards: NSF 42
- Overall dimensions: 2.99 in L x 1 in H x 1 in W
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.06
