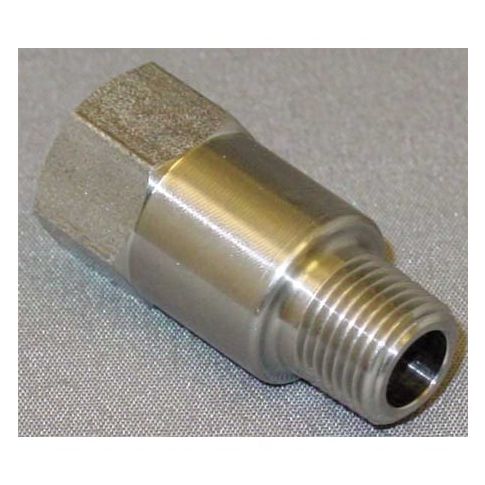

1/8" FNPT x MNPT Stainless Steel Piston Spring Check Valve MPN:CHK SST 210-2F2M-F
Free Shipping
In Stock
This 1/8in FNPT x MNPT Stainless Steel Piston Spring Check Valve is designed for use in a variety of applications where a reliable, low-pressure check valve is required. It features a compact inline design with a stainless steel body and piston, ensuring durability and resistance to corrosion. The valve's spring-loaded piston design allows for smooth, one-way flow, while its Viton seal ensures a tight seal even at high temperatures. Suitable for use in water and steam systems, this valve is ideal for applications in the chemical, pharmaceutical, and food processing industries, as well as in laboratory settings and other low-pressure applications.
Top product features:
- 1/8in FNPT x MNPT Stainless Steel Piston Spring Check Valve has a single flow design.
- It features an inline piston mechanism and body design.
- The valve has a stainless steel body.
Top product applications:
- Pump discharge lines for hydraulic systems
- Chemical injection systems
- Steam trap applications
ZORO SELECT Series 210 is an inline piston spring check valve for air and compatible fluid service. It features a stainless steel body, stainless steel internal components, and a Viton/FKM seal. The valve features a 1 psi cracking pressure and a spring-loaded piston for directional flow control, and it can be mounted horizontally or vertically.
Key Features:
- Valve type: Piston spring check valve with inline piston body design
- Body material: Stainless steel
- Check mechanism: Stainless steel piston with stainless steel spring and seat
- Seal material: Viton/FKM
- Connection size: 1/8 in. on both sides
- Connection type: FNPT x MNPT with NPT threaded ends
- Flow design: Single, full flow
- Pressure rating: 500 psi maximum operating/water pressure
- Temperature range: -20 degrees F to 180 degrees F
- Mounting orientation: Horizontal or vertical
- Cv: 0.2
- Dimensions: 1.19 in. overall length, 9/16 in. overall height, 9/16 in. hex size
- Standards: UL, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.28
