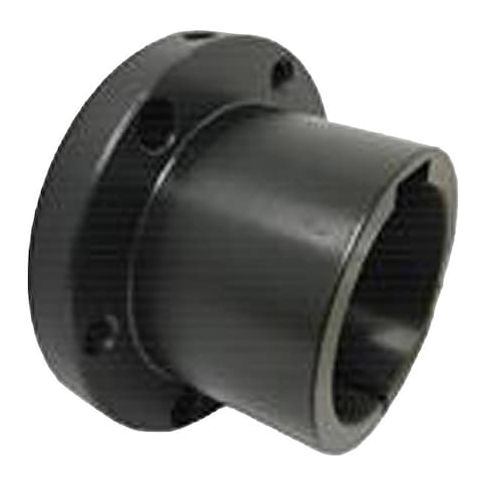

QD Bushing, SD, 40 mm B Dia, 1.813 in L MPN:SDX40MM
QD Bushing, SD, 40 mm B Dia, 1.813 in L
The QD Bushing from GoVets Select is a versatile and reliable quick-detachable solution for shafts and machinery. With a bore diameter of 40 mm and a length of 1.813 in, this bushing provides a secure and adjustable connection for keyed shafts. Its steel construction and split flange design make it easy to install and remove, while the included cap screws ensure a tight fit. Suitable for a range of applications, including industrial machinery, equipment, and machinery repair, this bushing offers a convenient and cost-effective way to connect and disconnect shafts with ease.
Top product features:
- Quick Detachable design allows for easy installation and removal of the bushing
- Bore diameter of 40 mm accommodates a keyed shaft
- Three cap screws are included for secure mounting
Top product applications:
- Shaft mounting
- Gearbox mounting
- Machine tool mounting
Quick Detachable Bushing, Bushing Type Quick Detachable, Bore Bushing Series SD, Bore Diameter 40 mm, Length 1.813 in, Bolt Circle Diameter 2.69 in, Bolt Size 1/4 In.-20 x 1-7/8 in, System of Measurement Metric, Bushing Diameter 2.188 in, Flange Type Split, Flange Width 7/16 in, For Shaft Type Keyed, Includes (3) Cap Screws, Keyway Height 3.5 mm, Keyway Width 12 mm, Length Less Flange 1.375 in, Material Steel, Overall Diameter 3.188 in, Taper 3/4 in Per ft
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 3.50
- Package Height: 2.10
- Package Weight: 1.30
Product info last updated on January 27, 2026 6:24am UTC
Category: Bearings, V-belts and Power Transmission Equipment
