ST Bushing, Q1, 32 mm B Dia, 2.5 in L MPN:Q1X32MM

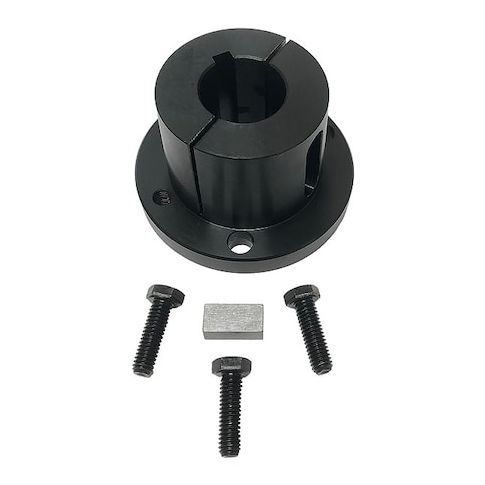

ST Bushing, Q1, 32 mm B Dia, 2.5 in L
The ST Bushing from GoVets Select is a reliable and versatile solution for applications requiring a secure connection between shafts and equipment. Its split taper design allows for easy installation and provides a strong, torque-resistant bond. With a bore diameter of 32 mm and a length of 2.5 inches, this bushing is suitable for a variety of uses, including machinery, equipment, and industrial applications. The included cap screws and keyed shaft design ensure a secure fit, while the steel material provides durability and resistance to wear and tear. Ideal for use in demanding environments, this bushing delivers reliable performance and long-lasting results.
Top product features:
- Split Taper Bushing design allows for secure attachment to shafts with keyed shaft type.
- Keyway height of 3.5 mm and keyway width of 10 mm enable precise fitment for keyed shafts.
- Fastener Tightening Torque Capacity of 348 in-lb ensures secure fastening of the bushing to the shaft.
Top product applications:
- Shaft Alignment
- Motor Mounting
- Gearbox Installation
Split Taper Bushing, Bushing Type Split Taper, Bore Bushing Series Q1, Bore Diameter 32 mm, Length 2.5 in, Bolt Circle Diameter 3.38 in, Bolt Size Not Applicable, System of Measurement Metric, Bushing Diameter 2.875 in, Fastener Tightening Torque Capacity 348 in-lb, Flange Type Solid, Flange Width 17/32 in, For Shaft Type Keyed, Includes (3) Cap Screws, Keyway Height 3.5 mm, Keyway Width 10 mm, Length Less Flange 1.969 in, Material Steel, Overall Diameter 4.125 in, Taper 3/4 in Per ft
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.80
- Package Width: 4.80
- Package Height: 4.00
- Package Weight: 4.55
Product info last updated on February 1, 2026 4:37am UTC
Category: Bearings, V-belts and Power Transmission Equipment
