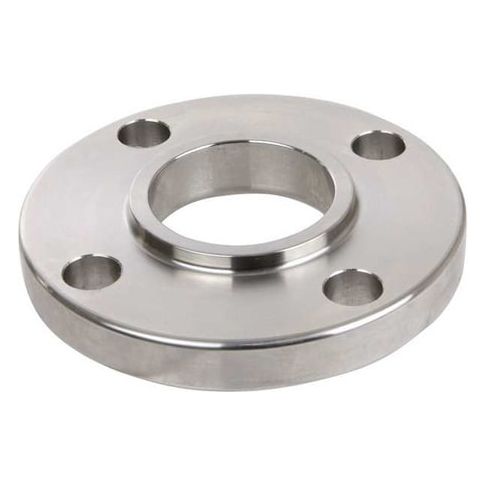

Slip-On Flange, 304/304L Stainless Steel, 3/4 in Pipe Size, Raised Face, Class 150, 4 Bolt Holes MPN:4381000410
Elevate your piping connections with the ZORO SELECT - 4381000410 stainless steel pipe flange. Designed for boltable pipe connections, this flange features a raised face for improved gasket contact and sealing, making it ideal for medium-pressure applications. Constructed from 304/304L stainless steel, it provides excellent corrosion resistance and durability. Suitable for use in systems requiring standardized face types and bolt patterns, this flange ensures easy interchangeability. Its compact size and robust design make it perfect for a range of applications, including plumbing, HVAC, and industrial piping systems, where reliability and efficiency are paramount.
Top product features:
- The flange has a raised face connection surface to improve gasket contact and sealing.
- The flange is made of 304/304L stainless steel, a corrosion-resistant steel alloy.
- The flange has four bolt holes of 5/8 inches each, allowing for secure fastening to a pipe.
Top product applications:
- High-Pressure Piping Systems
- Chemical Processing Plants
- Pulp and Paper Mills
The ZORO SELECT - 4381000410 is a stainless steel pipe flange designed for boltable pipe connections. It features a bolt circle diameter of 2 3/4 inches, four bolt holes of 5/8 inches each, and a flange outside diameter of 3 7/8 inches. This allows for the creation of pressure-tight joints with gasketing and bolting. Made of 304/304L stainless steel and classified as Class 150, it is suitable for medium-pressure applications and is compatible with systems requiring standardized face types and bolt patterns for easy interchangeability.
Key Features:
- - Bolt Circle Diameter: 2 3/4 in — Measures the center-to-center distance across opposing bolt holes.
- - Bolt Hole Diameter: 5/8 in — Specifies the inside diameter of each bolt hole for fastener fitment.
- - Class: Class 150 — Indicates the pressure rating of the flange, suitable for certain pressure applications according to industry standards.
- - Connection Surface: Raised Face — The flange’s sealing surface is raised to improve gasket contact and sealing.
- - Flange Outside Diameter: 3 7/8 in — Overall outside edge measurement of the flange.
- - Flange Thickness: 1/2 in — Thickness of the flange, contributing to its structural strength.
- - Material Grade: 304/304L Stainless Steel — Indicates corrosion-resistant steel alloy used in manufacture.
- - Nominal Pipe Size: 3/4 in — Standard pipe size compatible with the flange.
- - Number of Bolt Holes: 4 — Number of fastening points to secure the flange.
- - Standards: ASME A182, ASME B16.5 — Conformance to recognized industry standards for dimensions and performance.
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 3.70
- Package Height: 0.50
- Package Weight: 1.45
