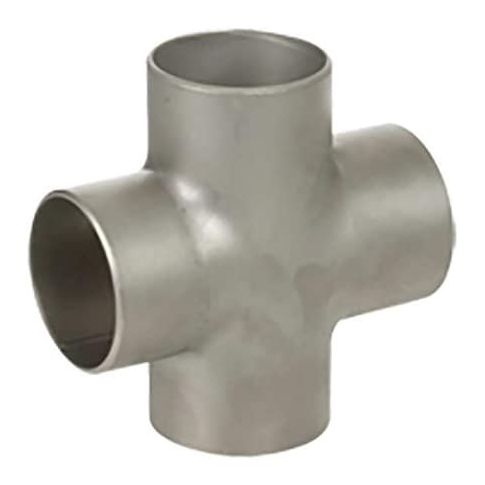

Cross, 316 SS, 1 1/2 in, 275 psi at 150 F MPN:4381015600
The ZORO SELECT 4381015600 stainless steel cross fitting is a versatile and reliable solution for joining or splitting flow among four pipe runs. Constructed from grade 316 stainless steel, this fitting offers corrosion resistance and durability in a variety of applications, including plumbing, HVAC, and industrial process piping systems. Its four-way connections at 90° arrangements make it an ideal choice for complex piping configurations, while its maximum operating pressure of 275 psi at 150°F ensures reliable performance. Suitable for pipes with Schedule 10 wall thickness, this fitting is a valuable addition to any piping system.
Top product features:
- The fitting has four openings arranged at 90° within a single plane, allowing for the joining or splitting of flow among four pipe runs.
- The fitting is constructed from grade 316 stainless steel, providing resistance to corrosion and durability in high-temperature applications.
- The fitting features butt-weld connections on all four sides, enabling secure and leak-free connections to pipe runs.
Top product applications:
- Plumbing systems
- HVAC systems
- Industrial process piping systems
The ZORO SELECT 4381015600 is a stainless steel cross fitting designed with four openings arranged at 90° within a single plane. Its configuration allows for the joining or splitting of flow among four pipe runs, typically used in plumbing, HVAC, and industrial process piping systems. Constructed from grade 316 stainless steel, it features butt-weld connections on all four sides with nominal pipe sizes of 1 1/2 inches, suitable for pipes with Schedule 10 wall thickness. The fitting has a maximum operating pressure of 275 psi at 150°F and measures 1 1/2 inches overall length. Material: 316 stainless steel
- Color: Silver
- Finish: standard.
Key Features:
- - Material: 316 stainless steel
- Finish: standard
- - Fitting Shape: Cross (four-way connections at 90° arrangements)
- - Connection Types: Butt weld on Side A, B, C, and D
- - Nominal Pipe Size: 1 1/2 in for all four sides
- - Pipe Schedule Compatibility: 10
- - Maximum Operating Pressure: 275 psi @ 150°F
- - Overall Length: 1 1/2 in
- - Standards: ASTM A403, ASTM A960, ASTM B16.9, MSS SP-43
- - Material Grade: 316
- - Color: Silver
- - Includes: Not specified whether pre-applied thread sealant or seals are included
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 1.90
- Package Height: 4.50
- Package Weight: 1.00
