StainlessSteel, Straight, 1/2"NPTx1/4"NPT MPN:ZUSA-PF-7810

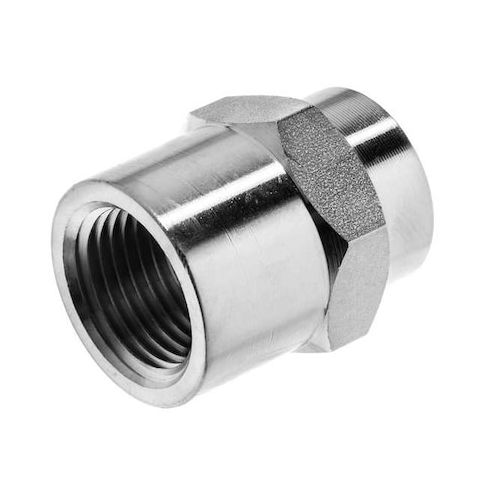

The ZORO SELECT - ZUSA-PF-7810 is a stainless steel instrumentation pipe fitting designed to function as a reducing hex coupling. It is machined from corrosion-resistant 304 stainless steel and fabricated to connect, redirect, or terminate small-diameter tubing and piping within instrumentation, sampling, and control systems. This fitting is rated for use with air, natural gas, oil, potable water, and steam within specified conditions. It has a maximum rated pressure of 4,600 psi, per product specifications, and conforms to ANSI B31.1 standards. The fitting is manufactured in accordance with low-lead content requirements for potable water safety, and it features female NPT connections on both ends with differing nominal pipe sizes of 1/2 inch and 1/4 inch.

Key Features:

• - Material: 304 stainless steel construction.
• - Specific shape: Reducing hex coupling.
• - Connection types: Female NPT on both sides.
• - Nominal pipe sizes: 1/2 in on Side A and 1/4 in on Side B.
• - Thread sizes: 14 TPI on Side A and 18 TPI on Side B.
• - Hex size for wrench: 1-1/8 inch across flats.
• - Maximum operating pressure: 4,600 psi.
• - Overall length: 1-3/8 inches.
• - Pre-applied thread sealant: Does not include thread sealant.
• - Seal included: Does not include sealing components.
• - Standards: Conforms to ANSI B31.1.
• - Application versatility: Compatible with air, natural gas, oil, potable water, and steam service.
