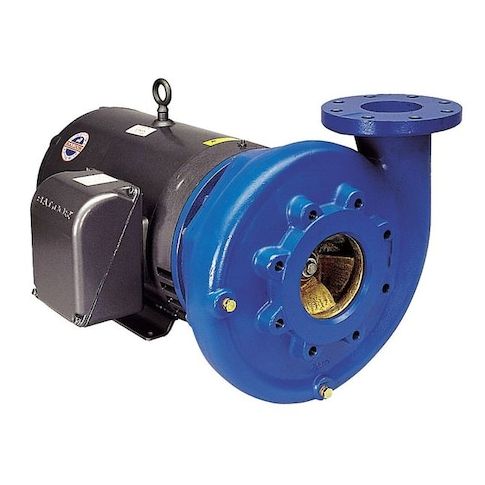

3656 Centrifugal Pump, 15 HP, 160 ft. Max. Head MPN:6BF1MBB0
Free Shipping
In Stock
The Goulds 3656 Centrifugal Pump is a high-performance solution for demanding water applications. Engineered for continuous-duty use, this 15 HP pump offers a maximum flow rate of 580 gpm and a maximum head of 160 feet. Ideal for high-volume liquid transfer, it operates at peak efficiency at 400 gpm @ 125 feet of head. Suitable for a variety of applications, including municipal water supply, industrial process water, and irrigation systems, this pump provides reliable performance and efficient operation. Its durable construction and easy maintenance design make it a valuable asset for any water management system.
Top product features:
- Close-coupled design for easy access to internal components without disturbing piping connections.
- Cast iron housing for durability in continuous-duty water applications.
- Mechanical Type 21 seal for reliable and long-lasting sealing performance.
Top product applications:
- Wastewater Treatment Plant
- High-rise building water supply system
- Industrial process water circulation system
The Goulds 6BF1MBB0 is a 15 HP, close-coupled, straight centrifugal high-head pump from the 3656 Series. It is constructed with a cast iron housing and a closed bronze impeller for continuous-duty water applications. The unit features a back pull-out design to facilitate internal component access without disturbing piping connections.
Hydraulic Performance:
- - This pump is engineered for high-volume liquid transfer with a maximum flow rate of 580 gpm and a maximum head of 160 feet.
- - Best Efficiency Point: Operates at peak efficiency at 400 gpm @ 125 feet of head.
- - Best Efficiency Range: Maintains high efficiency between 225 to 510 gpm within a head range of 150 to 90 feet.
Variable Flow Rates:
- - 60 ft Head: 570 gpm
- - 100 ft Head: 490 gpm
- - 140 ft Head: 320 gpm
- - 160 ft Head: 150 gpm
- - Pressure Limits: Maximum case pressure is 175 psi
Mechanical Construction:
- - Materials: Features a cast iron volute, bronze impeller, and stainless steel shaft.
- - Seal System: Utilizes a mechanical Type 21 seal
- - Connections: Equipped with a 4-inch flanged intake and a 3-inch flanged discharge
- the discharge can be rotated in 90-degree increments.
- - Solids Handling: Spherical solids up to 0.5 inches in diameter.
Electrical and Motor Specifications:
- - Motor: 15 HP, 3,500 RPM, 60 Hz motor with a 215JM frame designation.
- - Voltage: Configured for three-phase systems at 208-230/460V AC.
- - Enclosure: Open Dripproof (ODP) motor enclosure.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 31.00
- Package Width: 22.00
- Package Height: 25.30
- Package Weight: 256.00
