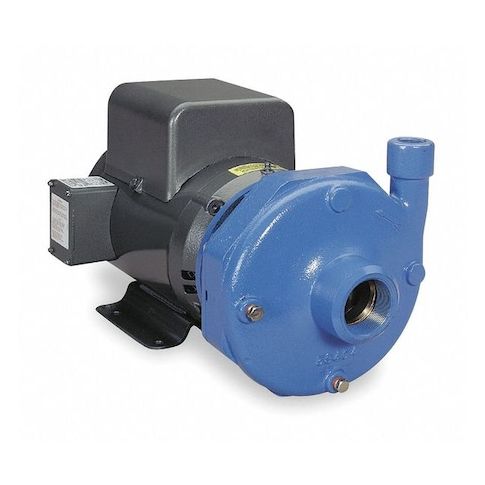

Goulds 5BF1L9G0, Centrifugal Pump, Series 3656, 10 HP, 170 ft. Max. Head MPN:5BF1L9G0
Free Shipping
In Stock
This high-performance centrifugal pump is designed for demanding water transfer applications, offering a maximum flow rate of 210 gpm and a maximum head of 170 ft. With a 10 hp, three-phase motor, it can handle heavy-duty operations with ease. The pump's cast iron housing, bronze impeller, and stainless steel shaft ensure durability and resistance to corrosion. Suitable for use in industrial, commercial, and municipal settings, it's ideal for applications such as water treatment, irrigation, and wastewater management. Its continuous-duty operation and reliable performance make it a valuable asset for any operation requiring efficient water transfer.
Top product features:
- Straight centrifugal high head pump with horizontal mounting.
- Powered by a 10 hp, three-phase electric motor operating on 208–230/460V AC.
- Configured with a closed bronze impeller with a mechanical seal.
Top product applications:
- Water Treatment Plants
- Industrial Process Water Systems
- Fire Protection Systems
This item is a straight centrifugal high head pump with a horizontal mounting orientation and a cast iron housing. It is powered by a 10 hp, three-phase electric motor operating on 208–230/460V AC and uses a closed bronze impeller with a mechanical seal. The pump is manually primed and configured with NPT inlet and discharge connections, supporting water transfer within specified flow, head, pressure, and temperature limits.
Key Features:
- Pump Type: Straight centrifugal high head pump with horizontal mounting.
- Motor Specifications: 10 hp, three-phase motor operating at 3,500 RPM on 208–230/460V AC, 60 Hz.
- Flow and Head Performance: Maximum flow rate up to 210 gpm with a maximum head of 170 ft.
- Pressure Rating: Maximum operating and shutoff pressure specified at 175 psi.
- Temperature Rating: Maximum liquid temperature specified up to 212°F.
- Construction Materials: Cast iron housing with bronze impeller and stainless steel shaft.
- Connections: 2 in NPT inlet and 1-1/2 in NPT discharge connections.
- Solids Handling: Maximum solid diameter specified at 5/16 in.
- Duty Cycle: Continuous-duty operation.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 25.50
- Package Width: 15.00
- Package Height: 17.00
- Package Weight: 203.00
