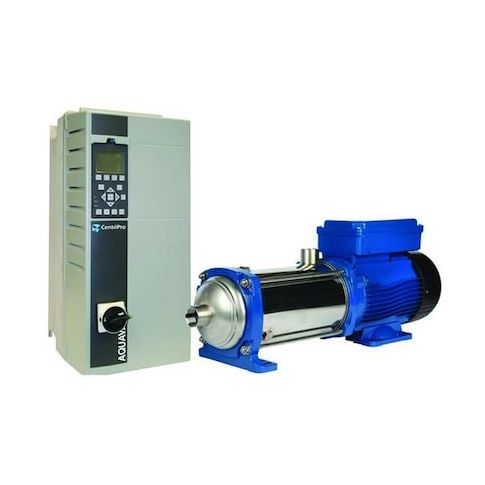

Constant Pressure Booster Pump, 5 hp, 230V AC, 1 Phase, 1-1/2 in NPT Inlet Size, 4 Stage MPN:5AVN310HM04
Constant Pressure Booster Pump, 5 hp, 230V AC, 1 Phase, 1-1/2 in NPT Inlet Size, 4 Stage
The Goulds Constant Pressure Booster Pump is a reliable and efficient solution for a wide range of applications, including water treatment, irrigation, and industrial processes. Its 5 hp motor and 4-stage design provide consistent pressure output, while its stainless steel construction and wetted materials ensure durability and resistance to corrosion. Suitable for liquids up to 250°F, this pump is perfect for high-temperature applications. With a service factor of 1.15 and a motor ambient temperature rating of 40°C, it can handle demanding conditions. Ideal for use in commercial and industrial settings, this pump offers a reliable and efficient solution for maintaining consistent pressure.
Top product features:
- Constant Pressure Booster Pump maintains a consistent pressure level, regardless of changes in flow rate or demand.
- The pump has a 4-stage design, which provides efficient and reliable operation.
- The pump features a closed impeller type, which reduces wear and tear on the impeller and improves overall pump performance.
Top product applications:
- Water Treatment Plants
- Wastewater Treatment Facilities
- Industrial Process Water Circulation Systems
Constant Pressure Booster System, 5 HP, Voltage 230, 1 Phase, Amps 10.9, 60 Hz, Motor RPM 3500, TEFC, Service Factor 1.15, Motor Ambient Temp. Rating 40 Degrees C, Housing Material Stainless Steel, Inlet 1-1/2 In., Outlet 1-1/4 In., Stages 4, Stainless Steel Wetted Materials, Stainless Steel Impeller Material, Closed Impeller Type, Carbon/Ceramic/Rubber Seal Material, Pressure Range 0 to 100 psi, Max. Liquid Temp. 250 Degrees F, Includes Pump Controller
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.00
- Package Width: 31.00
- Package Height: 17.50
- Package Weight: 75.00
Product info last updated on February 3, 2026 9:07am UTC
Category: Centrifugal Pumps
