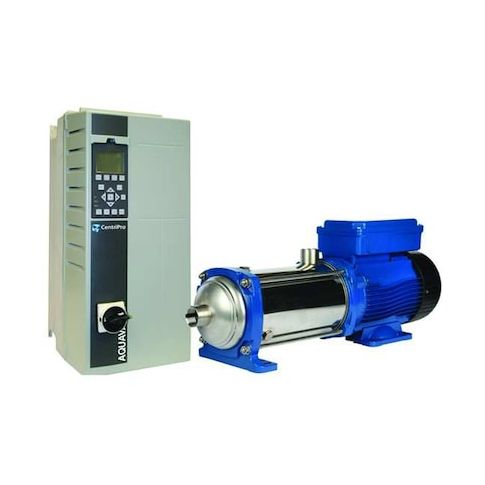

Constant Pressure Booster Pump, 5 hp, 230V AC, 1 Phase, 1-1/2 in NPT Inlet Size, 5 Stage MPN:5AVN310HM05
Constant Pressure Booster Pump, 5 hp, 230V AC, 1 Phase, 1-1/2 in NPT Inlet Size, 5 Stage
This 5 hp constant pressure booster pump is designed for reliable and efficient water pressure management in a variety of applications, including commercial and industrial settings. With a 5-stage design and stainless steel wetted materials, it provides consistent pressure and flow rates, even in high-temperature environments up to 250°F. The pump's compact size and durable construction make it ideal for use in tight spaces, and its closed impeller design reduces wear and tear on the motor. Suitable for applications such as water treatment, irrigation, and HVAC systems, this pump offers a reliable solution for maintaining optimal water pressure and flow rates.
Top product features:
- Constant Pressure Booster Pump maintains a consistent pressure level despite changes in demand or system resistance.
- The pump features a 5-stage design to provide efficient and reliable operation.
- The pump is equipped with a stainless steel wetted material and impeller, ensuring corrosion resistance and durability in harsh environments.
Top product applications:
- Water treatment plants
- Commercial laundry facilities
- High-rise building water supply systems
Constant Pressure Booster System, 5 HP, Voltage 230, 1 Phase, Amps 10.9, 60 Hz, Motor RPM 3500, TEFC, Service Factor 1.15, Motor Ambient Temp. Rating 40 Degrees C, Housing Material Stainless Steel, Inlet 1-1/2 In., Outlet 1-1/4 In., Stages 5, Stainless Steel Wetted Materials, Stainless Steel Impeller Material, Closed Impeller Type, Carbon/Ceramic/Rubber Seal Material, Pressure Range 0 to 100 psi, Max. Liquid Temp. 250 Degrees F, Includes Pump Controller
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.00
- Package Width: 31.00
- Package Height: 17.50
- Package Weight: 75.00
Product info last updated on January 30, 2026 2:14pm UTC
Category: Centrifugal Pumps
