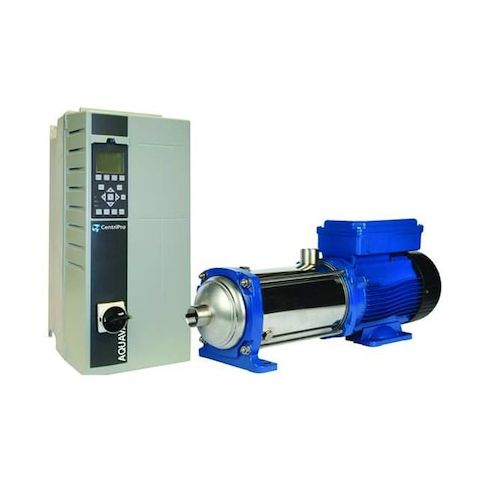

Constant Pressure Booster Pump, 5 hp, 230V AC, 1 Phase, 2 in NPT Inlet Size, 3 Stage MPN:5AVN315HM03
Constant Pressure Booster Pump, 5 hp, 230V AC, 1 Phase, 2 in NPT Inlet Size, 3 Stage
The Goulds Constant Pressure Booster Pump is a reliable and efficient solution for applications requiring consistent pressure in a variety of industries. Ideal for use in water treatment, wastewater, and chemical processing, this 5 hp pump provides a constant pressure output of 0-100 psi, making it perfect for applications such as booster systems, pressure boosting, and circulation. With a stainless steel housing and wetted materials, this pump is resistant to corrosion and can withstand high temperatures up to 250°F. Its compact design and easy installation make it a great choice for new or replacement installations.
Top product features:
- Constant Pressure Booster Pump maintains a consistent pressure level for optimal system performance
- 3-stage design allows for efficient liquid handling and pressure boosting
- Closed impeller type ensures a leak-free operation and minimizes the risk of contamination
Top product applications:
- Water supply systems for residential areas
- Industrial process water circulation systems
- High-rise building water pressure booster systems
Constant Pressure Booster System, 5 HP, Voltage 230, 1 Phase, Amps 10.9, 60 Hz, Motor RPM 3500, TEFC, Service Factor 1.15, Motor Ambient Temp. Rating 40 Degrees C, Housing Material Stainless Steel, Inlet 2 In., Outlet 1-1/2 In., Stages 3, Stainless Steel Wetted Materials, Stainless Steel Impeller Material, Closed Impeller Type, Carbon/Ceramic/Rubber Seal Material, Pressure Range 0 to 100 psi, Max. Liquid Temp. 250 Degrees F, Includes Pump Controller
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 34.00
- Package Width: 21.50
- Package Height: 28.50
- Package Weight: 330.00
Product info last updated on February 20, 2026 2:39pm UTC
Category: Centrifugal Pumps
