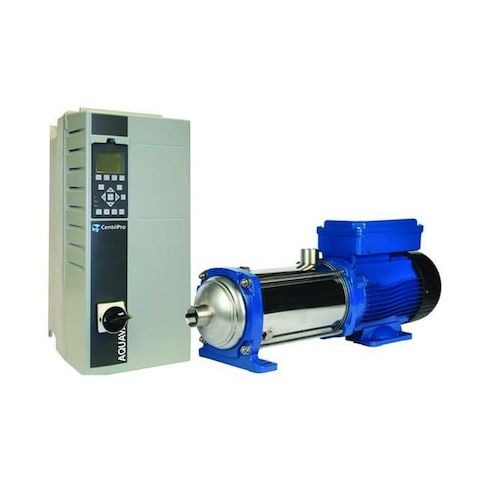

Constant Pressure Booster Pump, 5 hp, 230V AC, 1 Phase, 2 in NPT Inlet Size, 3 Stage MPN:5AVN115HM03
Constant Pressure Booster Pump, 5 hp, 230V AC, 1 Phase, 2 in NPT Inlet Size, 3 Stage
This 5 hp constant pressure booster pump is designed for applications requiring precise pressure control, such as commercial and industrial water treatment systems. Its three-stage design and stainless steel construction ensure reliable performance and durability in demanding environments. With a pressure range of 0 to 100 psi and a maximum liquid temperature of 250°F, this pump is suitable for a variety of applications, including irrigation, cooling systems, and process water treatment. Its compact size and easy installation make it an ideal choice for new installations or upgrades, providing a reliable and efficient solution for maintaining consistent pressure in critical systems.
Top product features:
- Constant Pressure Booster Pump maintains a consistent pressure level within a specified range of 0 to 100 psi.
- The pump features a 3-stage design for efficient pressure boosting.
- The pump is equipped with a stainless steel impeller for durability and resistance to corrosion.
Top product applications:
- Boiler Feed Water System
- Water Treatment System
- Industrial Process Pumping System
Constant Pressure Booster System, 5 HP, Voltage 230, 1 Phase, Amps 10.9, 60 Hz, Motor RPM 3500, TEFC, Service Factor 1.15, Motor Ambient Temp. Rating 40 Degrees C, Housing Material Stainless Steel, Inlet 2 In., Outlet 1-1/2 In., Stages 3, Stainless Steel Wetted Materials, Stainless Steel Impeller Material, Closed Impeller Type, Carbon/Ceramic/Rubber Seal Material, Pressure Range 0 to 100 psi, Max. Liquid Temp. 250 Degrees F, Includes Pump Controller
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 34.00
- Package Width: 21.50
- Package Height: 29.00
- Package Weight: 75.00
Product info last updated on May 10, 2026 10:48am UTC
Category: Centrifugal Pumps
