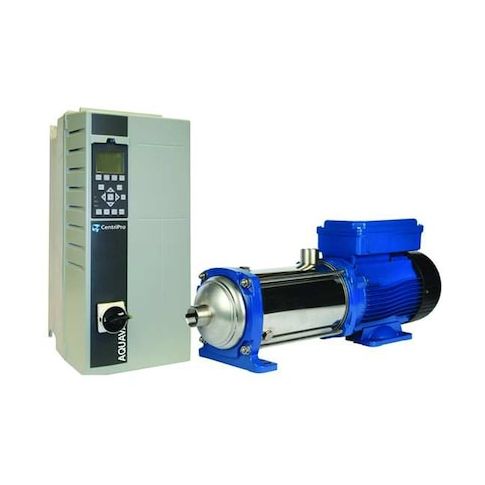

Constant Pressure Booster Pump, 3 hp, 230V AC, 1 Phase, 1-1/4 in NPT Inlet Size, 7 Stage MPN:3AVN35HM07
Constant Pressure Booster Pump, 3 hp, 230V AC, 1 Phase, 1-1/4 in NPT Inlet Size, 7 Stage
The Goulds Constant Pressure Booster Pump is a reliable and efficient solution for applications requiring consistent pressure delivery. Ideal for water treatment, commercial laundry, and industrial processes, this 3 hp pump offers a 7-stage design for precise pressure control. With a stainless steel housing and wetted materials, it provides long-lasting performance in demanding environments. The pump's compact design and efficient operation minimize energy consumption and reduce maintenance needs. Its versatility and reliability make it a valuable addition to any operation requiring consistent pressure delivery, from small businesses to large industrial facilities.
Top product features:
- Constant pressure booster system maintains a consistent pressure level
- Provides a maximum boost of 80 PSI at 20-30 GPM
- Closed impeller design ensures efficient liquid handling
Top product applications:
- Well water pressure boosting in rural areas
- Commercial water treatment systems
- Industrial water circulation and cooling systems
Constant Pressure Booster System, 3 HP, Voltage 230, 1 Phase, Amps 7.9, 60 Hz, Motor RPM 3500, TEFC, Service Factor 1.15, Motor Ambient Temp. Rating 40 Degrees C, Housing Material Stainless Steel, Inlet 1-1/4 In., Outlet 1 In., Stages 7, Stainless Steel Wetted Materials, Stainless Steel Impeller Material, Closed Impeller Type, Carbon/Ceramic/Rubber Seal Material, Pressure Range 0 to 100 psi, Max. Liquid Temp. 250 Degrees F, Max. PSI Boost @ 20-30 GPM 80, Includes Pump Controller
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.00
- Package Width: 31.00
- Package Height: 17.50
- Package Weight: 55.00
Product info last updated on March 2, 2026 6:56pm UTC
Category: Centrifugal Pumps
