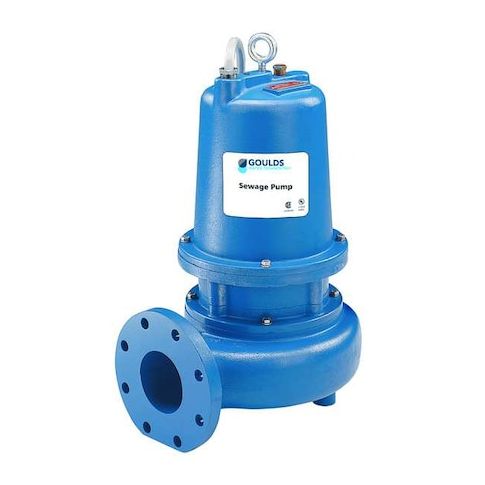

WS5032D4 Submersible Sewage Pump, 5 HP 4", Manual, 230V MPN:WS5032D4
The Goulds WS5032D4 is a reliable and efficient 5 HP submersible sewage pump designed for heavy-duty applications. Built with a cast iron body and impeller, it can pass 3-inch solids, making it ideal for residential and commercial sewage systems. With a maximum head of 52 feet and flow rates of up to 650 gpm, it can handle a variety of wastewater management tasks, including sump pits, septic systems, and stormwater drainage. Its compact design and quiet operation make it a great choice for confined spaces, and its 230V motor ensures easy installation and maintenance.
Top product features:
- Cast iron body and impeller capable of passing 3 inch solids.
- Operates at a maximum head of 52 feet and provides flow rates of up to 650 gpm at 10 ft Head.
- Built with a cast iron base and uses ball bearings for shaft alignment and thrust load management.
Top product applications:
- Wastewater treatment and sewage systems
- Industrial and commercial applications requiring high-capacity pumping
- Residential sewage and septic systems
The Goulds WS5032D4 is a 5 HP submersible sewage pump. It features a cast iron body and impeller capable of passing 3 inch solids.
Mechanical and Performance Data:
- - The pump operates at a maximum head of 52 feet and provides the following flow rates:
- - 10 ft Head: 650 gpm
- - 20 ft Head: 525 gpm
- - 30 ft Head: 370 gpm
- - 40 ft Head: 175 gpm
- - The assembly is built with a cast iron base and uses ball bearings for shaft alignment and thrust load management.
Electrical and Operational Specifications:
- - Motor: 5 HP, 230V, 3-Phase, 1750 RPM (60 Hz).
- - Current: 16.60 Amps.
- - Max. Liquid Temperature: 104°F
Construction and Dimensions:
- - Materials: Cast iron housing, volute, and impeller.
- - Shaft Seal: Silicon
- - Discharge: 4-inch
- - Dimensions: 28-1/4" Height x 15-3/4" Body Diameter.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 13.40
- Package Height: 27.90
- Package Weight: 208.00
