WS3034D3 Submersible Sewage Pump, 3 HP, 3", 460V, Manual MPN:WS3034D3

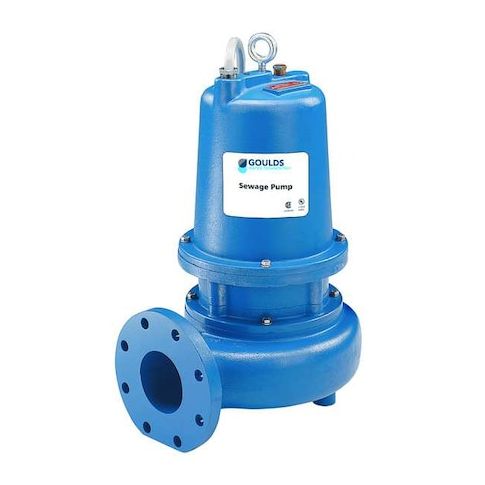

The Goulds WS3034D3 Submersible Sewage Pump is a reliable and efficient solution for handling wastewater and sewage in various applications. Designed for use in harsh environments, this 3 HP pump features a cast iron housing and impeller that can handle 2-1/2 inch solids. With a maximum total dynamic head of 54 feet and a flow rate of up to 470 gpm, this pump is ideal for commercial and industrial applications such as wastewater treatment plants, sewage pumping stations, and construction sites. Its compact design and easy installation make it a valuable asset for any operation that requires efficient and reliable sewage pumping.
Top product features:
- Cast iron housing and impeller designed for handling 2-1/2 inch solids.
- Operates at a maximum total dynamic head of 54 feet.
- Provides a maximum capacity of 470 gpm.
Top product applications:
- Wastewater treatment plants
- Residential sewage systems
- Industrial process water applications
The Goulds WS3034D3 is a 3 HP submersible sewage pump. It features a cast iron housing and impeller designed for handling 2-1/2 inch solids.
Mechanical and Flow Performance:
- - The pump operates at a maximum total dynamic head of 54 feet and provides the following performance data:
- - 10 ft Head: 300 gpm
- - 20 ft Head: 350 gpm
- - 30 ft Head: 265 gpm
- - 40 ft Head: 160 gpm
- - Maximum Capacity: 470 gpm
Electrical and Operational Specifications:
- - Motor: 3 HP, 460V, 3-Phase, 1750 RPM (60 Hz).
- - Current: 6.0 Amps
- - Liquid Temperature: 104°F
- - Construction Details
- - Materials: Gray cast iron (ASTM A48, Class 30) casing, motor housing, and impeller
- 303 stainless steel base.
- - Bearings: Ball bearings
- - Dimensions: 27-5/8" H x 15-1/2" Body Diameter.
- - Discharge: 3-inch
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.00
- Package Width: 13.40
- Package Height: 27.50
- Package Weight: 194.00
