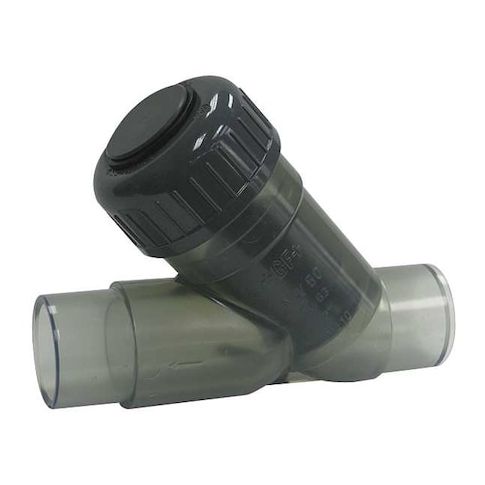

1-1/2" Spigot PVC Y Check Valve MPN:192304010
This 1-1/2in Spigot PVC Y Check Valve is a versatile and reliable solution for various applications. Suitable for general-purpose use, it features a single flow design with a Y mechanism and body, ensuring efficient fluid control. Constructed with PVC material and EPDM seals, it can withstand temperatures up to 140°F and is suitable for a range of industries, including plumbing, HVAC, and water treatment. Its compact size and lightweight design make it easy to install and maintain, while its durable construction ensures long-lasting performance and minimizes downtime. Ideal for use in residential, commercial, and industrial settings.
Top product features:
- The product has a single flow design check valve mechanism.
- The product has a Y body design.
- The product is made with EPDM seal and seat material.
Top product applications:
- General Purpose
- General Purpose
- General Purpose
GF Piping Systems 192304010 is a 1-1/2 in. Y check valve with a PVC body and spigot x spigot male connections. It is intended for compatible piping applications within the listed pressure and temperature ratings. The check valve configuration supports one-direction flow applications and backflow reduction. The Y-style body provides access for inspection and maintenance. Mounting orientations: horizontal or vertical.
Key Features:
- Y pattern check valve with single-flow design and piston check mechanism
- 1-1/2 in. nominal valve size with 1-1/2 in. side 1 and side 2 connections
- Spigot x spigot, male connections on both ends
- PVC body and PVC check mechanism
- EPDM seal and seat material
- 0.43 psi cracking pressure
- 49 gpm flow rating
- 10 bar maximum operating pressure
- Operating temperature range: 32 degrees F to 140 degrees F
- NSF 61
- ISO/JIS
- Dimensions: 8 in. length, 5-53/64 in. overall height, 3-15/32 in. width
Additional Information
- Country of Origin: CH
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.10
- Package Width: 7.50
- Package Height: 5.30
- Package Weight: 1.95
