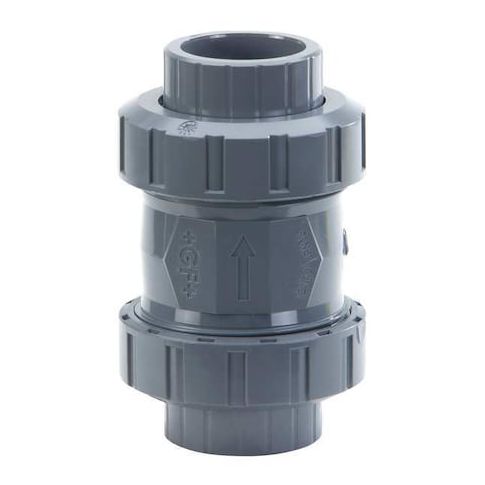

3/8" Threaded Socket PVC/EPDM Spring Check Valve MPN:161562101
The Georg Fischer 3/8in Threaded Socket PVC/EPDM Spring Check Valve is a reliable and versatile solution for various industrial applications. Its single-flow design and inline spring mechanism ensure consistent and efficient flow control, while its PVC body and EPDM seals provide excellent chemical resistance and durability. Suitable for general-purpose use, this valve is ideal for horizontal and vertical installations, and can withstand temperatures up to 140°F. Its compact size and lightweight design make it easy to integrate into existing systems, and its threaded connection ensures secure and leak-free operation.
Top product features:
- 3/8in Threaded Socket PVC/EPDM Spring Check Valve has a single flow design.
- The valve has an inline spring mechanism.
- The valve has a seal made of EPDM material.
Top product applications:
- General Purpose
- General Purpose
- General Purpose
The GEORG FISCHER 161562101 is a 3/8 in inline spring check valve for flow control in compatible piping systems. It is configured for one-way flow applications and reverse-flow reduction, with a PVC body and check mechanism, EPDM seal and seat, and socket/threaded connections on both ends. The valve supports horizontal or vertical mounting and is rated for operation up to 232 psi, 16 bar, and 140 Degrees F.
Key Features:
- Valve type: Inline spring check valve
- Size: 3/8 in nominal valve size with 3/8 in female connections on both sides
- Connection style: Socket/Threaded x Socket/Threaded
- Body and internal materials: PVC body and PVC check mechanism
- Seal and seat material: EPDM
- Spring material: 304 stainless steel
- Cracking pressure: 0.41 psi
- Flow rating: 13 gpm
- Pressure rating: 232 psi maximum pressure
- 16 bar maximum operating pressure
- Temperature range: 32 Degrees F to 140 Degrees F
- Mounting orientation: Horizontal or vertical
- Certifications and standards: NSF 61
- ISO 9393
- ISO 16137
- Dimensions: 4.13 in overall length, 1-31/32 in overall height, 105 mm length, 50 mm width
- Valve series: Type 562
Additional Information
- Country of Origin: CH
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.30
- Package Width: 3.50
- Package Height: 2.30
- Package Weight: 0.40
