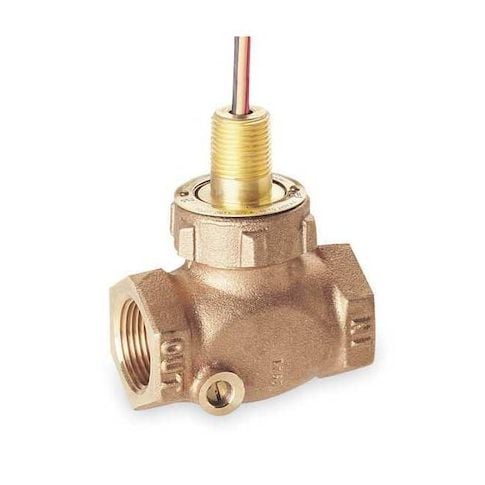

1" FNPT SPDT Liquid Flow Switch 1 to 6 gpm MPN:FS-200, 26615
1" FNPT SPDT Liquid Flow Switch 1 to 6 gpm
Monitor and control liquid flow with the 1in FNPT SPDT Liquid Flow Switch from Gems Sensors. This reliable flow switch is designed for use in a variety of applications, including industrial and commercial settings, where it can detect flow rates from 1 to 6 gpm. Its durable construction and wide temperature range make it suitable for use in harsh environments. The switch's piston design provides accurate and consistent flow detection, while its Class I, Div 2, Group A, B, C, D rating ensures safe operation in hazardous locations. Ideal for use in water treatment, oil and gas, and other industries.
Top product features:
- 1in FNPT SPDT Liquid Flow Switch detects liquid flow rates between 1 and 6 gallons per minute.
- The switch has a maximum ambient temperature of 200 Degrees F and a minimum ambient temperature of -20 Degrees F.
- The switch is designed to operate in hazardous locations, meeting Class I, Div 2, Group A, B, C, D specifications.
Top product applications:
- Pump protection system for industrial applications
- Water treatment plants for monitoring flow rates
- Automotive cooling systems for detecting coolant flow
Liquid Flow Switch, Ambient Temperature - Maximum 200 Degrees F, Ambient Temperature - Minimum -20 Degrees F, Connection Size 1 in, Connection Type FNPT, Contact Rating (DC) 20 V, Filter Rating - Maximum 150 micron, Flow Rate - Maximum 6 gpm, Flow Rate - Minimum 1 gpm, Flow Switch Type Piston, Hazardous Location Specification Class I, Div 2, Group A, B, C, D, Housing Material Bronze, Media Temperature - Maximum 200 Degrees F, Media Temperature - Minimum -20 Degrees F, Overall Height 3 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.90
- Package Width: 2.60
- Package Height: 5.00
- Package Weight: 2.15
Product info last updated on February 7, 2026 4:54pm UTC
Category: Pump Controls
