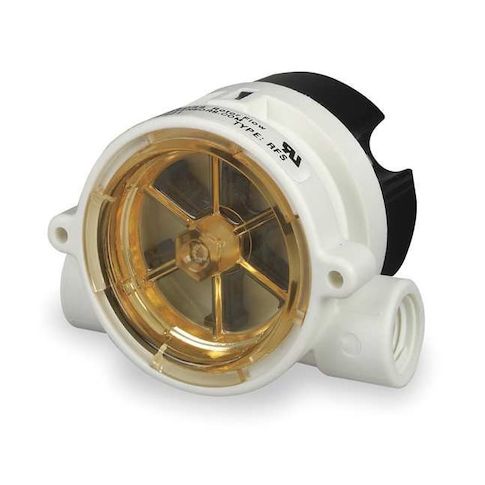

1" FNPT SPDT Liquid Flow Switch 24VDC 8 to 60 gpm MPN:RFS, 181688
1" FNPT SPDT Liquid Flow Switch 24VDC 8 to 60 gpm
The Gems Sensors 1in FNPT SPDT Liquid Flow Switch is a reliable and efficient solution for monitoring liquid flow in various industrial applications. This compact switch can handle flow rates from 8 to 60 gpm and operates within a wide temperature range of -20 to 212°F. Its Hall Effect technology provides accurate and consistent flow detection, while its brass housing ensures durability in harsh environments. Suitable for use in water treatment, chemical processing, and HVAC systems, this flow switch offers a reliable way to monitor and control liquid flow, reducing downtime and improving overall system efficiency.
Top product features:
- Measures liquid flow rates from 8 to 60 gallons per minute
- Detects liquid flow using Hall Effect technology
- Operates within a temperature range of -20 to 212 degrees Fahrenheit
Top product applications:
- Industrial Process Control: This flow switch can be used to monitor and control the flow of liquids in industrial processes, such as in chemical plants or power generation facilities.
- Cooling Systems: The 1in FNPT SPDT Liquid Flow Switch can be used in cooling systems to detect when the flow of coolant is above or below a certain threshold, triggering alarms or shutdowns as needed.
- Water Treatment Plants: This flow switch can be used in water treatment plants to monitor the flow of water through various stages of treatment, such as filtration or disinfection.
Liquid Flow Switch, Ambient Temperature - Maximum 212 Degrees F, Ambient Temperature - Minimum -20 Degrees F, Connection Size 1 in, Connection Type FNPT, Contact Rating (AC) 45 mA @ 115V (No Load), 95 mA @ 115V (Load - Relay Energized), Contact Rating (DC) 20 mA @ 24V, Filter Rating - Maximum 150 micron, Flow Rate - Maximum 60 gpm, Flow Rate - Minimum 8 gpm, Flow Switch Type Hall Effect, Housing Material Brass, Media Temperature - Maximum 212 Degrees F, Media Temperature - Minimum -20 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 3.80
- Package Height: 3.80
- Package Weight: 1.60
Product info last updated on January 23, 2026 5:34am UTC
Category: Pump Controls
