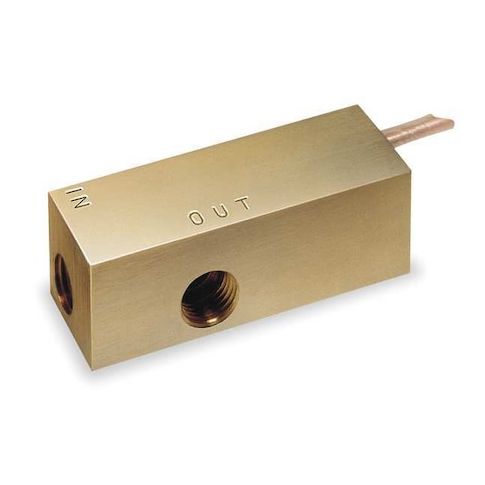

1/4" FNPT SPST NC Liquid Flow Switch 0.75 gpm MPN:FS-927, 70829
1/4" FNPT SPST NC Liquid Flow Switch 0.75 gpm
This 1/4in FNPT SPST NC Liquid Flow Switch from Gems Sensors is a reliable and accurate solution for monitoring liquid flow in various applications. Its piston flow switch design ensures consistent performance in temperatures ranging from -20°F to 200°F, making it suitable for use in industrial, commercial, and even medical settings. The switch can detect flow rates as low as 0 gpm and up to 0.75 gpm, allowing for precise control and monitoring of liquids. Its compact size and easy installation make it an ideal choice for a wide range of applications, including water treatment, chemical processing, and HVAC systems.
Top product features:
- Detects liquid flow with a minimum flow rate of 0 gpm and a maximum flow rate of 0.75 gpm.
- Activates at a maximum ambient temperature of 200 Degrees F and a minimum ambient temperature of -20 Degrees F.
- Has a piston flow switch type and a maximum filter rating of 50 micron.
Top product applications:
- Liquid level monitoring in a tank
- Monitoring coolant flow in an industrial machinery system
- Detecting water flow in a residential plumbing system
Liquid Flow Switch, Ambient Temperature - Maximum 200 Degrees F, Ambient Temperature - Minimum -20 Degrees F, Connection Size 1/4 in, Connection Type FNPT, Contact Rating (DC) 20 V, Filter Rating - Maximum 50 micron, Flow Rate - Maximum 0.75 gpm, Flow Rate - Minimum 0 gpm, Flow Switch Type Piston, Housing Material Brass, Media Temperature - Maximum 200 Degrees F, Media Temperature - Minimum -20 Degrees F, Overall Height 1 in, Overall Length 2.8 in, Overall Width 1 in, Phase -
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 2.20
- Package Height: 1.70
- Package Weight: 0.76
Product info last updated on March 17, 2026 1:28pm UTC
Category: Pump Controls
