1/4" FNPT SPST NC Liquid Flow Switch 1 gpm MPN:FS-927, 70830

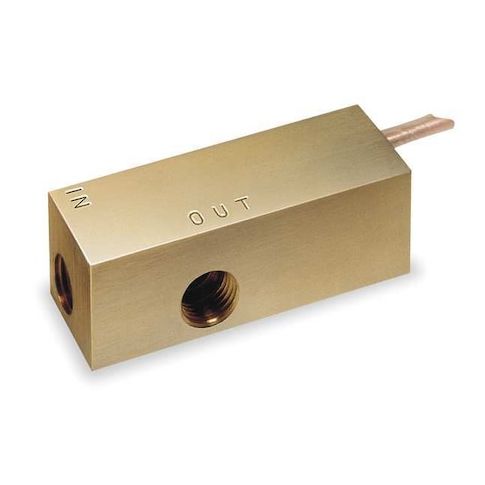

1/4" FNPT SPST NC Liquid Flow Switch 1 gpm
This 1/4in FNPT SPST NC Liquid Flow Switch from Gems Sensors is a reliable and efficient solution for detecting liquid flow in various industrial applications. Its compact design and robust construction make it suitable for use in harsh environments, with an operating temperature range of -20°F to 200°F. The switch provides a clear indication of flow status, allowing for precise control and monitoring of liquid flow rates up to 1 gpm. Ideal for use in chemical processing, water treatment, and oil and gas industries, this flow switch offers reliable performance and long-lasting durability.
Top product features:
- Detects liquid flow to 1 gpm
- Switch type is piston
- Has a filter rating of 50 micron
Top product applications:
- Chemical Process Control: The 1/4in FNPT SPST NC Liquid Flow Switch from Gems Sensors can be used to monitor and control the flow of chemicals in industrial processes, ensuring safe and efficient operation.
- Water Treatment Plants: This flow switch can be used to detect and respond to changes in water flow rates in water treatment plants, helping to prevent overflows and maintain optimal treatment conditions.
- Industrial Cooling Systems: The 1/4in FNPT SPST NC Liquid Flow Switch can be used to monitor and control the flow of coolant fluids in industrial cooling systems, helping to prevent overheating and ensure reliable operation of equipment.
Liquid Flow Switch, Ambient Temperature - Maximum 200 Degrees F, Ambient Temperature - Minimum -20 Degrees F, Connection Size 1/4 in, Connection Type FNPT, Contact Rating (DC) 20 V, Filter Rating - Maximum 50 micron, Flow Rate - Maximum 1 gpm, Flow Rate - Minimum 0 gpm, Flow Switch Type Piston, Housing Material Brass, Media Temperature - Maximum 200 Degrees F, Media Temperature - Minimum -20 Degrees F, Overall Height 1 in, Overall Length 2.8 in, Overall Width 1 in, Phase -
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.30
- Package Width: 1.80
- Package Height: 4.70
- Package Weight: 0.80
Product info last updated on February 2, 2026 5:32pm UTC
Category: Pump Controls
