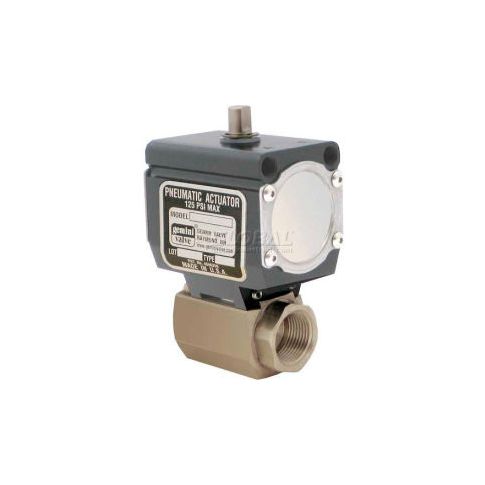

Gemini Valve® High Duty Cycle S/S Ball Valve W/Double-Acting Pneumatic Actuator 1" 1 87-6-RTV-6-C90BDB
Gemini Valve® High Duty Cycle S/S Ball Valve W/Double-Acting Pneumatic Actuator 1"
The Gemini Valve High Duty Cycle S/S Ball Valve W/Double-Acting Pneumatic Actuator is designed for high-performance applications requiring maintenance-free service. Suited for high-cycling applications, this valve features a self-compensating stem seal design for extended leak-tight service. Its compact size and lightweight aluminum actuator with stainless steel trim ensure excellent corrosion resistance. Ideal for use in industries such as oil and gas, chemical processing, and power generation, this valve provides reliable bubble-tight closure and 100% duty cycle performance. Its remote piloting capabilities and optional Namur interface make it a versatile solution for a wide range of applications.
Top product features:
- The valve features a patented self-compensating valve stem seal design that ensures long extended leak-tight service.
- The valve is bubble tested to provide leak-free service as installed.
- The actuator is permanently lubricated, eliminating the need for a lubricated air supply.
Top product applications:
- High cycling applications where stem seal leakage is problematic
- Applications requiring extended maintenance free service
- Applications involving a wide range of media where corrosion resistance is critical
87 series features the latest innovation in a premium quality long lasting and truly maintenance automated valve. Suited for a variety of applications including those involving high cycling where stem seal leakage is problematic or where extended maintenance free service is desired. Seats and seals are glass filled reinforced ptfe p.T.F.E and viton suited for wide range of medias / applications. Standard port construction for excellent flow characteristics. The valve is operated by a double-acting rack and pinion pneumatic actuator which operates on 60-125 psi air. The actuator features a lightweight aluminum body with hard anodized surfaces for excellent corrosion resistance. Actuators are permanently lubricated so that a lubricated air supply is not necessary. The actuator has (2) 1/8 npt air port connections for remote piloting or optional namur interface for direct pilot valve mounting. Features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" designed for maintenance free high duty cycle applications patented self compensating valve stem seal design ensures long extended leak-tight service bubble tight closure - each valve is bubble tested to provide leak-free service as installed 100 duty cycle performance compact size lightweight hard anodized aluminum actuator with stainless steel trim for excellent corrosion resistance (2) 1/8 npt air port connections for remote piloting standard optional namur interface for direct pilot valve mounting manual override made in u.S.A. - raymond new hampshire
Additional Information
- UNSPSC: 40141607
- Brand: Gemini Valve Sales & Service Inc.
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: MI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 3.27
- Package Width: 2.13
- Package Height: 5.17
- Package Weight: 4.00
Product info last updated on August 16, 2025 7:30am UTC
Category: Valves
