Torque Multiplier, 18:1, 6, 000 Nm, 3/4 in Input x 1-1/2 in Output, Z-Form Reaction Arm MPN:DVV-60ZRS

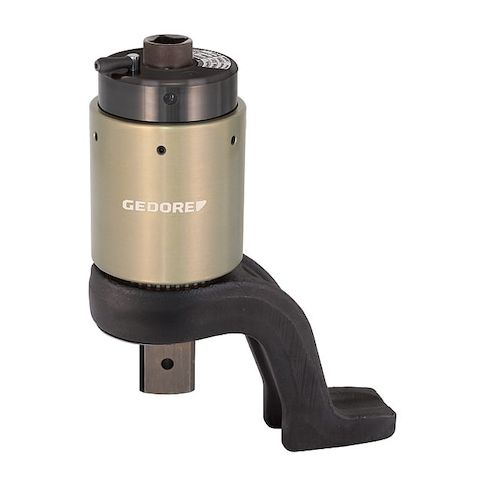

The GEDORE DVV-60ZRS is a torque multiplier used to increase applied input torque for high-torque bolting work. It features a 2-stage planetary gear system with a maximum rated output of 4,400 ft-lb from a maximum rated input of 300 ft-lb, and is suited for bridgebuilding and general bolting applications. This model has a 3/4 in female input square drive, a 1-1/2 in male output square drive, and includes a calibration certificate and molded case.

Key Features of the GEDORE DVV-60ZRS Torque Multiplier:

• Accuracy: +/-3% for controlled torque output.
• Max Rated Output: 4,400 ft-lb torque capacity.
• Max Rated Input: 300 ft-lb input capacity.
• Gear System: 2-stage planetary design.
• Angle of Turn Protractor: Marked in 5 degree increments.
• Antibacklash Device: Self-contained configuration.
• Reaction System: Z-form reaction arm.
• Drive Sizes: 3/4 in female input square drive and 1-1/2 in male output square drive.
• Construction: Aluminum body with chrome finish.
• Dimensions: 9-1/2 in overall length, 12-3/4 in overall height, and 4-1/32 in overall width.
• Handle Length: 7-1/2 in.
• Weight: 23.15 lb.
• Included: Molded case and calibration certificate.
