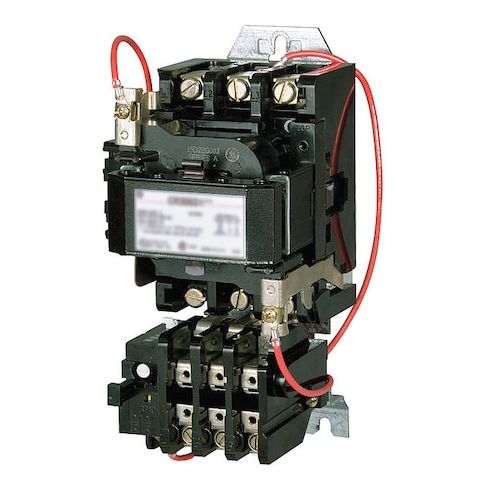

Magnetic Motor Starter, CR306 Series, Non-Reversing, NEMA Size 5, 480V AC Coil, 3-Pole, 270 A MPN:CR306G104
Free Shipping
In Stock
The GE Magnetic Motor Starter is a reliable and efficient solution for controlling three-phase motors in a variety of applications. Suitable for use in industrial settings, this starter provides overload protection and can handle high horsepower ratings, making it ideal for applications such as manufacturing, material handling, and power generation. Its non-reversing design ensures safe and controlled motor operation, while its NEMA enclosure rating and compact size make it easy to install and integrate into existing systems. With a fast lead time and no minimum order quantity, this starter is a convenient and practical choice for businesses of all sizes.
Top product features:
- Magnetic motor starter provides overload protection through thermal means.
- The starter is designed for non-reversing operation.
- The starter is rated for 480V AC and can handle up to 200 horsepower at three-phase operation.
Top product applications:
- High-voltage industrial power distribution systems
- Commercial and industrial motor control applications
- Heavy-duty manufacturing and processing equipment control
The GE CR306G104 is a non-reversing magnetic motor starter for three-phase motor control. It uses a 480V AC coil and is built in NEMA size 5 style, with thermal overload protection for motor starting and control applications. This starter is rated for 50/60 Hz operation and can be used with motors up to 75 hp at 208V AC, 100 hp at 240V AC, and 200 hp at 480V AC, 575V, and 600V AC.
Key Features of the GE CR306G104 Magnetic Motor Starter:
- Coil Voltage: 480V AC coil for control circuit operation.
- Configuration: Non-reversing magnetic motor starter for standard motor starting applications.
- Phase and Poles: Three-phase, 3-pole design.
- Current Rating: 270 A AC.
- Horsepower Ratings: 75 hp at 208V AC
- 100 hp at 240V AC
- 200 hp at 480V AC, 575V, and 600V AC.
- Overload Protection: Thermal overload protection type.
- NEMA Style: NEMA starter, size 5.
- Enclosure Rating: NEMA 1.
- Mounting Style: DIN rail mounting with 0.38 in mounting holes and 14.25 in mounting hole height spacing.
- Construction: Weld-resistant design with holding interlock included.
- Operating Temperature Range: -4 degrees F to 158 degrees F.
- Overall Size: 14.25 in H x 11.5 in W x 9 in D.
- Standards: CSA and UL Listed.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 40.00
- Package Width: 48.00
- Package Height: 16.00
- Package Weight: 157.00
