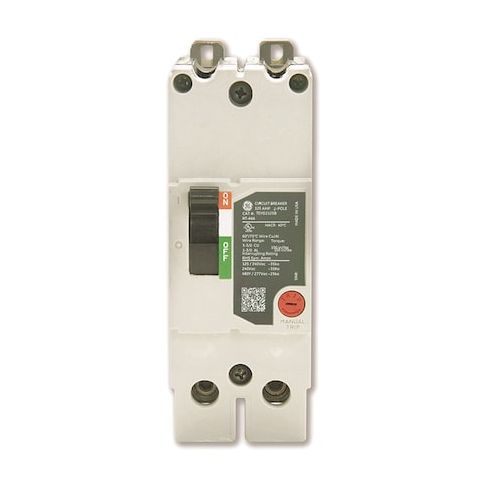

Molded Case Circuit Breaker, TEYD Series, 90A, 2 Pole, 277/480V AC, 25kA at 277/480V AC MPN:TEYD2090B
Molded Case Circuit Breaker, TEYD Series, 90A, 2 Pole, 277/480V AC, 25kA at 277/480V AC
The GE TEYD Series 90A Molded Case Circuit Breaker is a reliable and efficient solution for a variety of applications, including commercial and industrial settings. Designed for use with GE AS Lighting Panels, this circuit breaker offers a high level of protection and safety, featuring a thermal-magnetic trip type and a maximum short-circuit current rating of 25kA. Its compact design and bolt-on mounting style make it easy to install and integrate into existing systems. Suitable for use in harsh environments, this circuit breaker is a valuable addition to any electrical panel, providing peace of mind and optimal performance.
Top product features:
- Molded case design provides a compact and space-efficient enclosure for the circuit breaker.
- Thermal magnetic trip type provides sensitive and reliable overload and short-circuit protection.
- Bolt-on mounting style allows for easy and secure installation on panelboards.
Top product applications:
- Industrial Lighting Panels
- Commercial Lighting Systems
- Electrical Distribution Systems
Molded Case Circuit Breaker, 90 A Amps, AC Voltage Rating 277/480V AC, Max. AIR Rating 25kA at 277/480V AC, For Use With GE AS Lighting Panels, Series TEY, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating 250V DC, Terminal Connection Lug, Trip Type Thermal Magnetic, Phase Single, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 125A/TEY, Circuit Breaker Mounting Style Bolt On Panelboard, Height 5.2 in, Width 2 in, Depth 3 in, Min. Wire Size 4 AWG
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 30 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.25
- Package Width: 6.00
- Package Height: 5.25
- Package Weight: 1.50
Product info last updated on January 13, 2026 1:36pm UTC
Category: Circuit Protection
