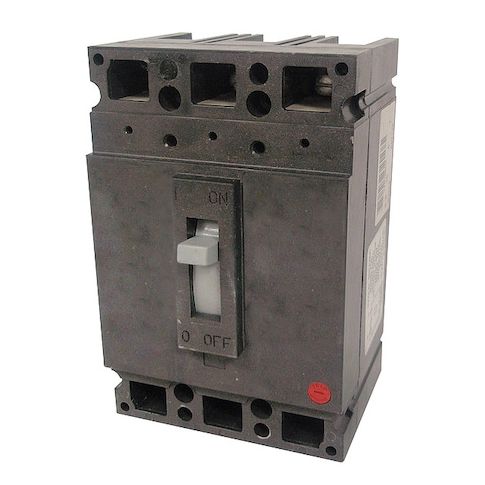

Molded Case Circuit Breaker, TED Series, 90A, 3 Pole, 600V AC, 14kA at 600V AC MPN:TED136090WL
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2220723
Molded Case Circuit Breaker, TED Series, 90A, 3 Pole, 600V AC, 14kA at 600V AC
Protect your electrical system with the GE TED Series 90A 3-Pole Molded Case Circuit Breaker. Designed for use with GE panelboards, this breaker provides reliable and efficient protection against overloads and short circuits. Its thermal magnetic trip type ensures fast and accurate response to electrical disturbances, while its 14kA at 600V AC rating provides robust protection against high-energy faults. Ideal for a wide range of applications, including commercial and industrial settings, this breaker is perfect for use in lighting, motor control, and power distribution systems. Its compact design and bolt-on mounting style make it easy to install and integrate into your existing electrical infrastructure.
Top product features:
- Trip Type: Thermal Magnetic
- Terminal Connection: Line/Load Lug
- Phase Connection: ABC
Top product applications:
- Industrial electrical panelboards
- Commercial electrical panelboards
- Heavy industrial electrical panelboards
Molded Case Circuit Breaker, 90 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 18kA at 120/240/277/480V AC, For Use With GE Panelboards, Series TED, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating 125/250/500V DC, Terminal Connection Line/Load Lug, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 150A/TED, Circuit Breaker Mounting Style Bolt On Panelboard, Height 6.31 in, Width 4.13 in, Depth 4.09 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.70
- Package Width: 4.50
- Package Height: 4.70
- Package Weight: 4.27
Product info last updated on January 13, 2026 12:46pm UTC
Category: Circuit Protection
