Piston Air Compressor, 2 hp, 200-230V AC MPN:120R689-PSP101-N800NX
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G915364638

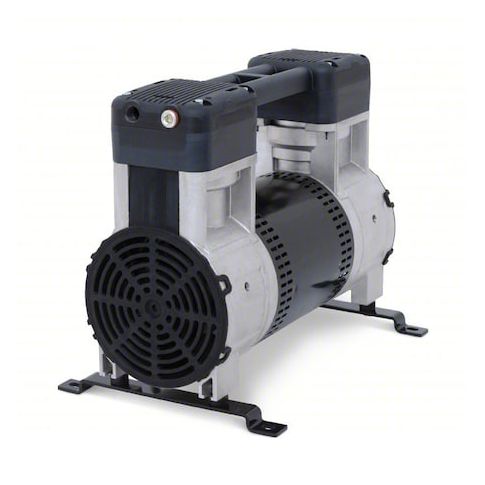

Piston Air Compressor, 2 hp, 200-230V AC
The Gast 2 hp piston air compressor is a reliable and efficient solution for various industrial and commercial applications. Suitable for use in environments where lubrication is not feasible, this compressor provides a maximum continuous pressure of 145 psi and a maximum intermittent pressure of 135 psi. With a free air flow rate of 10-12 cfm, it can meet the demands of pneumatic tools, equipment, and systems. Ideal for use in manufacturing, construction, and maintenance settings, this compressor is a valuable addition to any operation requiring a compact and versatile air supply solution.
Top product features:
- Piston air compressor design provides 10 cfm and 12 cfm free air flow rates.
- Maximum continuous pressure of 145 psi is achievable.
- Maximum intermittent pressure of 135 psi is available.
Top product applications:
- Paint Booths
- Automotive Repair Shops
- Industrial Manufacturing
The Gast 120R689-PSP101-N800NX is a twin-cylinder piston air compressor with a rocking-piston design. It operates on 200-230V AC single-phase power at 50/60 Hz at a rated 2 hp output. It provides a free-air flow rate of 10 cfm, and a maximum continuous pressure of 145 psi. It has a maximum speed of 1,725 RPM, a full-load current of 10 A at 60 Hz and 8 A at 50 Hz, and a measured sound level of 79 dB. The operating temperature range is 41 to 104°F. Construction includes an aluminum cylinder, a permanent split capacitor motor, and stainless steel valves. Air connections are 3/8 in NPT inlet and outlet. Overall dimensions are 15.35 x 6.66 x 12.69 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 6,000 hr.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 21.50
- Package Width: 13.10
- Package Height: 14.60
- Package Weight: 69.80
Product info last updated on February 12, 2026 7:29pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
