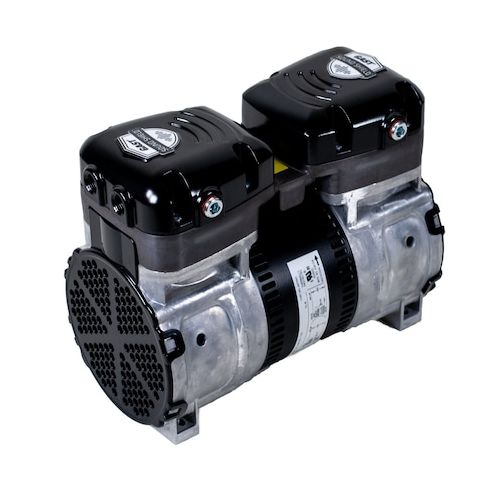

Piston Air Compressor, Rocking, 0.5 hp MPN:87R642-PS103R-N470X
Piston Air Compressor, Rocking, 0.5 hp
The Gast 87R642-PS103R-N470X is an oil-free piston air compressor with a rocking-piston design. It operates on 115/120V AC, 230/240V AC single-phase power at 50 Hz, 60 Hz at a rated 1/2 hp output. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 3.6 cfm, a maximum continuous pressure of 125 psi, and a maximum vacuum of 24.75 in Hg. It has a maximum speed of 1,725 RPM, a full-load current of 2.6 A, 2.8 A, 5.1 A, 5.7 A, and a measured sound level of 54.5 dBA. The operating temperature range is 32 to 104°F. Construction includes an aluminum cylinder, a capacitor-start motor, and stainless steel valves. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 9.54 x 5 x 7.88 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 16,000 hr.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.00
- Package Width: 10.30
- Package Height: 10.80
- Package Weight: 23.12
- Prop 65 Cancer Warning Chemical: Nickel compounds
Product info last updated on March 16, 2026 7:14pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
