Electric Air Compressor, 3/4 hp Output MPN:106R650-101-N600X
Electric Air Compressor, 3/4 hp Output

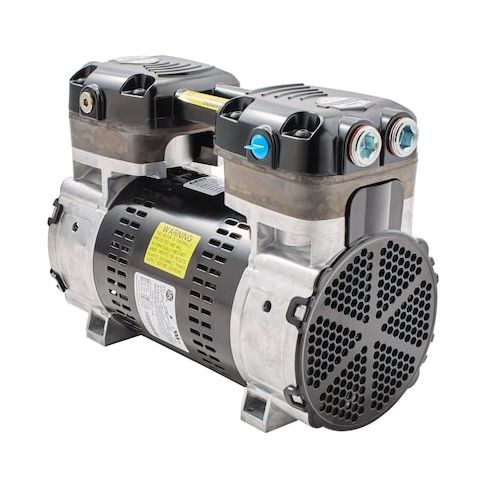

The Gast 106R650-101-N600X is an oil-free electric air compressor. It operates on 120V AC, 230V AC power at 50 Hz, 60 Hz at a rated 3/4 hp output. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 1.2 cfm at maximum pressure, and a maximum continuous pressure of 145 psi. It has a maximum speed of 1,725 RPM, a full-load current of 3.8 A, 7.4 A, and a measured sound level of 70 dBA. The operating temperature range is 41 to 104°F. Construction includes a capacitor-start motor. Enclosure type is open drip-proof. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 11.85 x 5.68 x 8.91 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 20,000 hr.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.70
- Package Width: 10.30
- Package Height: 11.10
- Package Weight: 29.55
Product info last updated on February 26, 2026 11:11pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
