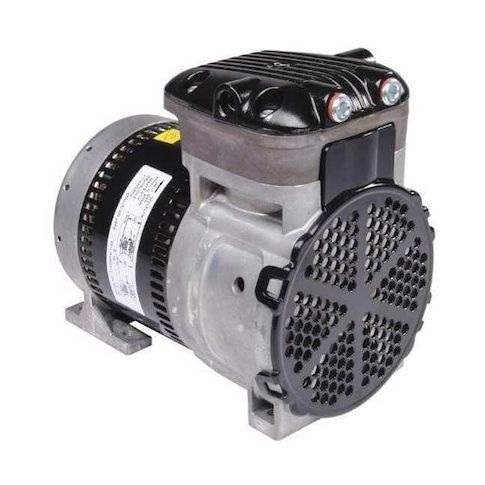

Rocking Piston Vacuum Pump, 7-5/16"W MPN:86R142-P001B-N270X
Rocking Piston Vacuum Pump, 7-5/16"W
This Rocking Piston Vacuum Pump from Gast is a reliable and efficient solution for various industrial applications. Ideal for use in laboratories, research facilities, and manufacturing environments, it provides a maximum continuous pressure of 100 psi and a maximum vacuum of 27 in Hg. With a free air flow rate of 2 cfm, it can handle demanding tasks with ease. Its compact design and single-phase operation make it a convenient addition to any setup. Suitable for applications such as vacuum drying, degassing, and pressure testing, this pump offers a reliable and cost-effective solution for a wide range of industries.
Top product features:
- Rocking piston design for efficient vacuum creation
- Generates a maximum continuous pressure of 100 psi
- Achieves a maximum vacuum of 27 in Hg
Top product applications:
- Laboratory equipment
- Chemical processing equipment
- Medical equipment
The Gast 86R142-P001B-N270X is a single-cylinder rocking piston vacuum pump. It operates on 115/230V AC single-phase power at 50 Hz, 60 Hz at a rated 1/4 hp output, in a tankless configuration. It provides a free-air delivery ranging from 0.8 CFM at 100 psi up to 2.0 CFM at 0 psi, a maximum continuous pressure of 100 psi, and a maximum vacuum of 27 in Hg. It has a maximum speed of 1,725 RPM, a full-load current of 2.8/1.4 A, and a measured sound level of 65 dBA. The operating temperature range is 41 to 104°F. Construction includes an aluminum cylinder, a capacitor-start motor, and stainless steel valves. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 7.718 x 7.312 x 7.078 in (L x W x H). The manufacturer lists typical applications including aeration, beverage dispensing, nitrogen generation, and tire inflation.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.90
- Package Width: 10.10
- Package Height: 10.90
- Package Weight: 17.85
