Rocking Piston Vacuum Pump, 0.125 hp MPN:86R123-101-N170X
Rocking Piston Vacuum Pump, 0.125 hp

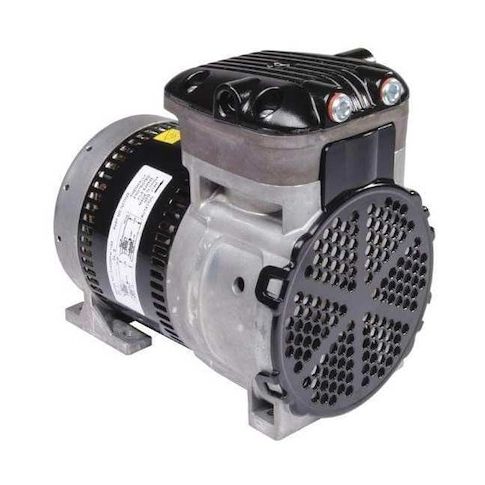

The Gast 86R123-101-N170X is a single-cylinder rocking piston vacuum pump. It operates on 115/230V AC single-phase power at 50 Hz, 60 Hz at a rated 1/8 hp output, in a tankless configuration. It provides a free-air delivery ranging from 0.3 CFM at 100 psi up to 1.1 CFM at 0 psi, a maximum continuous pressure of 125 psi, and a maximum vacuum of 27 in Hg. It has a maximum speed of 1,725 RPM, a full-load current of 1.4/0.8 A, and a measured sound level of 65 dBA. The operating temperature range is 41 to 104°F. Construction includes an aluminum cylinder, a capacitor-start motor, and stainless steel valves. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 7.718 x 5 x 7.078 in (L x W x H). The manufacturer lists typical applications including aeration, beverage dispensing, nitrogen generation, and tire inflation.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.80
- Package Width: 10.10
- Package Height: 10.90
- Package Weight: 15.30
Product info last updated on February 14, 2026 11:42pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
