Vacuum Pump, 1 1/4 in Inlet, 115-120V MPN:87R647-VS101-N470X
Vacuum Pump, 1 1/4 in Inlet, 115-120V
This 0.5 hp lubrication type oil-free vacuum pump from Gast is ideal for applications requiring high vacuum pressure and low maintenance. With a maximum vacuum of 28 in Hg and free air flow rate of 4.8 cfm, it can efficiently handle various tasks. Suitable for use in laboratories, medical facilities, and industrial settings, this pump excels in applications such as vacuum drying, degassing, and material processing. Its compact design and single-phase operation make it easy to integrate into existing systems, providing reliable performance and minimizing downtime. Order now and experience the benefits of Gast's high-quality vacuum technology.
Top product features:
- Lubrication type design allows for oil-free operation
- Two-cylinder design provides efficient vacuum generation
- Maximum vacuum of 28 in Hg can be achieved
Top product applications:
- Laboratory equipment
- Chemical processing equipment
- Medical equipment

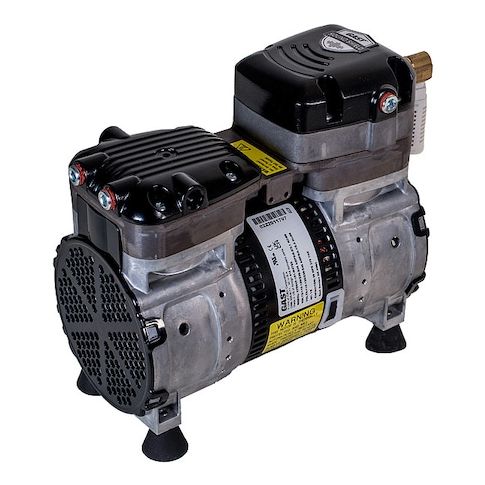

The Gast 87R647-VS101-N470X is an oil-free, twin-cylinder vacuum pump with a rocking-piston design. It operates on 115-120V AC single-phase power at 50 Hz, 60 Hz at a rated 1/2 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 4.8 cfm, and a maximum vacuum of 28 in Hg. It has a maximum speed of 1,725 RPM, a full-load current of 5.1 A, 6.2 A, and a measured sound level of 55 db. The operating temperature range is 41 to 104°F. Construction includes stainless steel valves. Air connections are a 1 1/4 in NPT inlet and a 1/4 in NPT outlet. Duty cycle: continuous. Rated life expectancy: 2,000 hr.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 10.00
- Package Height: 10.00
- Package Weight: 19.50
Product info last updated on February 18, 2026 9:12am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
