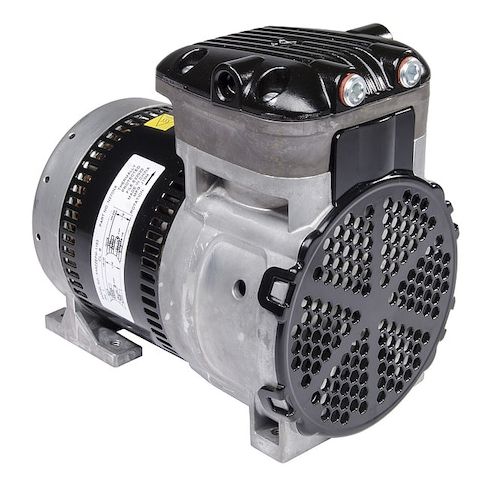

Rocking Piston Compressor Vacuum Pump MPN:86R130-101-N270X
Rocking Piston Compressor Vacuum Pump
This Rocking Piston Compressor Vacuum Pump from Gast is a reliable and efficient solution for a variety of applications, including laboratory, medical, and industrial settings. Its 0.25 hp output power and 1.45 cfm free air flow rate make it ideal for applications that require high vacuum pressure. The pump's compact design and single-phase operation also make it easy to integrate into existing systems. With a maximum continuous pressure of 125 psi and a maximum vacuum of 26.2 in Hg, this pump is suitable for tasks such as vacuum drying, degassing, and pressure testing. Its durable construction ensures long-lasting performance.
Top product features:
- Output Power: 0.25 hp
- Maximum Continuous Pressure: 125 psi
- Maximum Vacuum: 26.2 in Hg
Top product applications:
- Laboratory vacuum systems
- Vacuum drying and degassing applications
- Scientific research and development
The Gast 86R130-101-N270X is a rocking piston compressor vacuum pump. It operates on 115/230V AC single-phase power at 50 Hz, 60 Hz at a rated 1/4 hp output, in a tankless configuration. It provides a free-air flow rate of 1.45 cfm, a maximum continuous pressure of 125 psi, and a maximum vacuum of 26.2 in Hg. It has a maximum speed of 1,725 RPM, a full-load current of 1.8/1.0 A, 3.1/1.5 A, and a measured sound level of 65 dBA. The operating temperature range is 32 to 104°F. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 7.71 x 5.08 x 7.08 in (L x W x H). Duty cycle: continuous.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.90
- Package Width: 10.30
- Package Height: 10.80
- Package Weight: 17.44
Product info last updated on January 16, 2026 2:03am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
