Piston Air Compressor, 3/4HP, 115/230V, 1Ph MPN:5LCA-246S-M550GX
Piston Air Compressor, 3/4HP, 115/230V, 1Ph
The Gast Piston Air Compressor is a reliable and efficient solution for various industrial and commercial applications. This 3/4HP compressor is designed for use in settings where oil-free lubrication is required, making it ideal for applications in the food, pharmaceutical, and medical industries. With a maximum continuous pressure of 50 psi and a free air flow rate of 5.85 cfm, this compressor is suitable for powering tools, cleaning equipment, and other pneumatic devices. Its compact size and moderate power output make it perfect for small to medium-sized workshops, garages, and facilities.
Top product features:
- Oil-free lubrication
- Two-cylinder design
- Maximum continuous pressure of 50 psi
Top product applications:
- Laboratory Air Supply
- Automotive Repair and Maintenance
- Medical Equipment Operation

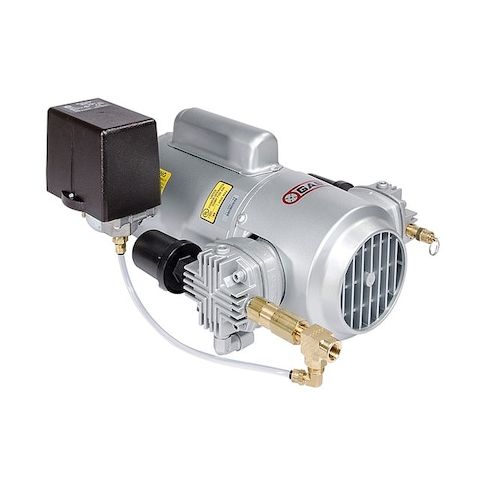

The Gast 5LCA-246S-M550GX is an oil-free, twin-cylinder piston air compressor with a reciprocating design. It operates on 115/230V AC single-phase power at 60 Hz at a rated 3/4 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 5.85 cfm, and a maximum continuous pressure of 50 psi. It has a maximum speed of 1,750 RPM, a full-load current of 16/8 A, and a measured sound level of 75 dBA. The operating temperature range is 32 to 104°F. Construction includes a cast iron cylinder, a capacitor-start motor, and stainless steel valves. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 17.187 x 12.25 x 8.333 in (L x W x H).
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.30
- Package Width: 16.60
- Package Height: 14.90
- Package Weight: 48.15
Product info last updated on February 24, 2026 3:41pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
