Piston Air Comp/Vacuum Pump, 2 hp, 3 Phase MPN:8HDM-251-M853
Piston Air Comp/Vacuum Pump, 2 hp, 3 Phase
This 2HP Piston Air Compressor/Vacuum Pump from Gast is a versatile and reliable solution for a variety of applications. Suitable for use in manufacturing, laboratories, and other industries, it provides a maximum continuous pressure of 100 psi and a free air flow rate of 11 cfm. The lubrication-free design eliminates the need for oil maintenance, reducing downtime and increasing overall efficiency. Ideal for applications such as vacuum drying, pneumatic tool operation, and air supply systems, this compressor/vacuum pump is a valuable addition to any facility requiring a reliable and powerful air supply.
Top product features:
- Piston-driven design provides a reliable and efficient compression mechanism.
- Oil-free lubrication type ensures the compressor remains free from contamination and maintenance.
- Four cylinders enable high-capacity airflow and pressure generation.
Top product applications:
- Paint and Coating Operations
- Medical and Laboratory Equipment
- Industrial Cleaning and Maintenance

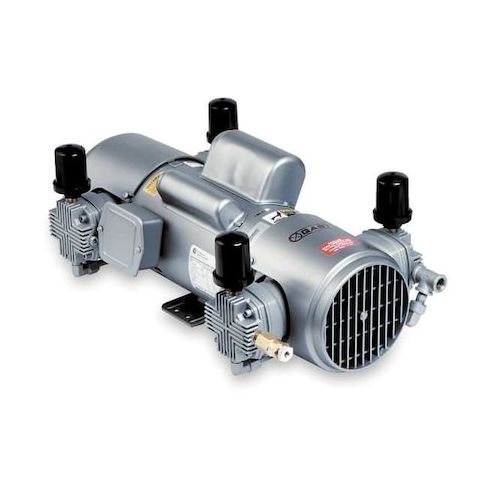

The Gast 8HDM-251-M853 is an oil-free, four-cylinder piston air compressor/vacuum pump with a reciprocating design. It operates on 230/460V AC three-phase power at 60 Hz at a rated 2 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air delivery ranging from 7.0 CFM at 100 psi up to 11.0 CFM at 0 psi, and a maximum continuous pressure of 100 psi. It has a maximum speed of 1,725 RPM, a full-load current of 6.6/3.3 A, and a measured sound level of 74 dBA. The operating temperature range is 32 to 104°F. Construction includes an aluminum cylinder, an open drip-proof motor, and stainless steel valves. Air connections are 3/8 in NPT inlet and outlet. Overall dimensions are 22.375 x 12.375 x 8.75 in (L x W x H). Duty cycle: continuous.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 28.60
- Package Width: 17.60
- Package Height: 12.90
- Package Weight: 77.00
Product info last updated on January 28, 2026 5:51pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
