Piston Air Compressor, 1HP, 115/230V, 1Ph MPN:6LCF-246S-M616NEX
Piston Air Compressor, 1HP, 115/230V, 1Ph
This 1HP piston air compressor from Gast is designed for reliable and efficient operation, ideal for applications requiring high pressure air supply. With a maximum continuous pressure of 50 psi and free air flow rate of 6.3 cfm, it's suitable for tasks such as powering pneumatic tools, inflating tires, and operating air-powered machinery. Its oil-free lubrication system ensures minimal maintenance and reduced downtime. The compact design and single-phase operation make it easy to integrate into various workspaces, including garages, workshops, and industrial settings. Its versatility and reliability make it a valuable addition to any air-powered operation.
Top product features:
- Lubrication type is oil-free, allowing for cleaner air output.
- Has a maximum continuous pressure of 50 psi, suitable for various industrial applications.
- Produces 6.3 cfm of free air flow rate, enabling efficient operation.
Top product applications:
- Paint and Coating Operations
- Automotive Repair Shops
- Medical and Laboratory Equipment Cleaning

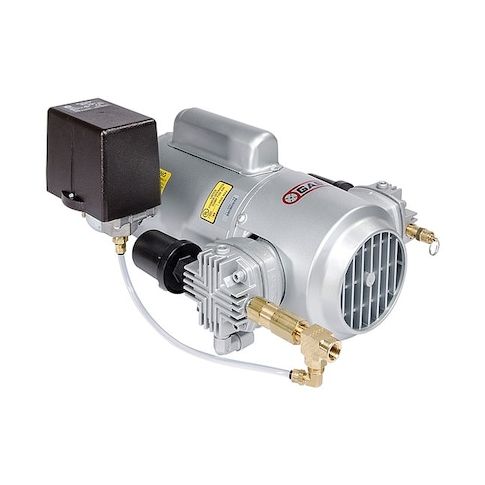

The Gast 6LCF-246S-M616NEX is an oil-free, twin-cylinder piston air compressor with a reciprocating design. It operates on 115/230V AC single-phase power at 60 Hz at a rated 1 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 6.3 cfm, and a maximum continuous pressure of 50 psi. It has a maximum speed of 1,750 RPM, a full-load current of 14.8/7.4 A, and a measured sound level of 75 dBA. The operating temperature range is 32 to 104°F. Construction includes a cast iron cylinder, a capacitor-start motor, and stainless steel valves. Air connections are 3/8 in NPT inlet and outlet. Overall dimensions are 16.75 x 12.333 x 8.333 in (L x W x H).
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.40
- Package Width: 16.40
- Package Height: 13.00
- Package Weight: 61.10
