Piston Air Compressor/Vacuum Pump, 1/6HP MPN:1LAA-251-M100X
Piston Air Compressor/Vacuum Pump, 1/6HP
This 1/6HP Piston Air Compressor/Vacuum Pump from Gast is a versatile and reliable solution for various industrial and laboratory applications. Ideal for use in laboratories, medical facilities, and small manufacturing environments, it provides a maximum continuous pressure of 50 psi and a maximum vacuum of 26 in Hg. The oil-free design ensures minimal maintenance and reduces the risk of contamination. With a free air flow rate of 1.51 cfm and a maximum speed of 1,725 RPM, this pump is perfect for applications such as vacuum drying, vacuum packaging, and pneumatic tool operation. Its compact size and ease of use make it a valuable addition to any facility.
Top product features:
- Lubrication Type Oil Free
- Maximum Continuous Pressure 50 psi
- Maximum Vacuum 26 in Hg
Top product applications:
- Laboratory Equipment
- Dental Equipment
- Medical Equipment

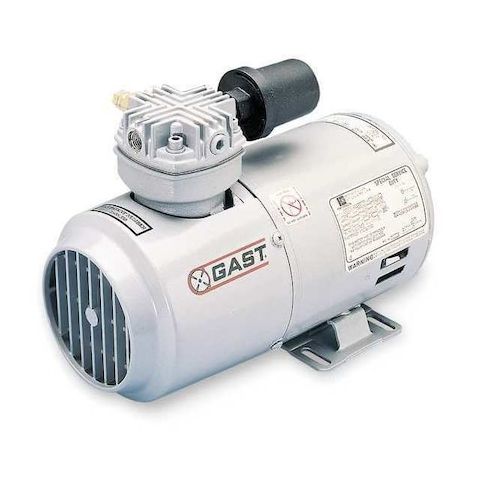

The Gast 1LAA-251-M100X is an oil-free, single-cylinder piston air compressor/vacuum pump with a reciprocating design. It operates on 115V AC single-phase power at 60 Hz at a rated 1/6 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air delivery ranging from 0.9 CFM at 50 psi up to 1.51 CFM at 0 psi, a maximum continuous pressure of 50 psi, and a maximum vacuum of 26 in Hg. It has a maximum speed of 1,725 RPM, a full-load current of 4.3 A, and a measured sound level of 75 dBA. The operating temperature range is 32 to 104°F. Construction includes a cast iron cylinder, a split-phase motor, and stainless steel valves. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 11.625 x 5.625 x 8.5 in (L x W x H).
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.70
- Package Width: 11.60
- Package Height: 12.30
- Package Weight: 22.45
Product info last updated on February 1, 2026 6:03am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
