Piston Air Compressor, Size 1/4", 1575 RPM MPN:LOA-101-HB
Piston Air Compressor, Size 1/4", 1575 RPM

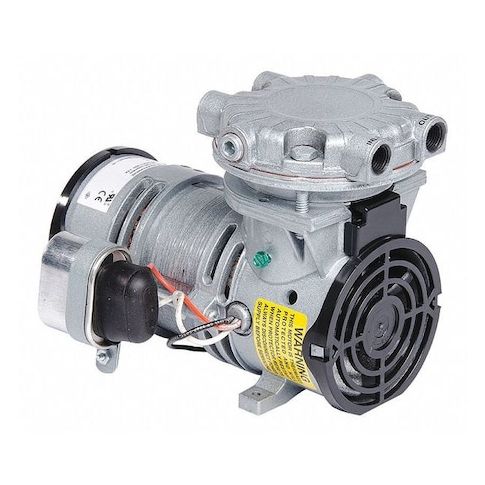

The Gast LOA-101-HB is an oil-free, single-cylinder piston air compressor with a reciprocating design. It operates on 110/115V AC single-phase power at 50 Hz, 60 Hz at a rated 1/16 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 0.66 cfm, a maximum continuous pressure of 100 psi, and a maximum vacuum of 26 in Hg. It has a maximum speed of 1,575 RPM, and a measured sound level of 70 dBA. The operating temperature range is 41 to 104°F. Construction includes an aluminum cylinder, a capacitor-start motor, and reed valves. Enclosure type is clean dust free. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 7.98 x 5.71 x 5.97 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 16,000 hr.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.50
- Package Width: 13.10
- Package Height: 8.30
- Package Weight: 9.34
Product info last updated on March 10, 2026 4:52pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
