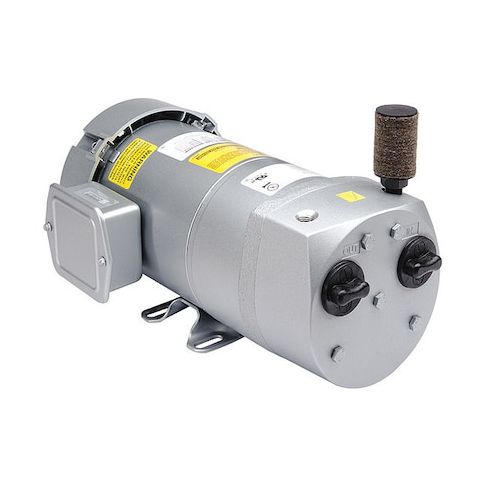

At05-101-G215Dx Rotary Vane Pump MPN:AT05-101-G215DX
The At05-101-G215Dx Rotary Vane Pump from Gast is a reliable and efficient vacuum pump designed for a variety of applications. With a free air flow rate of 4.8 cfm and a maximum vacuum of 24 in Hg, it's ideal for use in laboratories, medical facilities, and industrial settings where precise vacuum control is required. The pump's compact size and quiet operation make it perfect for use in confined spaces, such as cleanrooms and fume hoods. Its durability and low maintenance requirements make it a cost-effective solution for applications where vacuum pressure is critical, including chemical processing and material testing.
Top product features:
- Vacuum Pump, capable of producing a maximum vacuum of 24 in Hg
- Rotary Vane Pump design provides a free air flow rate of 4.8 cfm
- Output Power of 0.25 hp allows for efficient operation at a maximum speed of 1,725 RPM
Top product applications:
- Vacuum Sealing Systems
- Laboratory Equipment
- Medical Equipment
The GAST - AT05-101-G215DX is a rotary vane vacuum pump rated for continuous operation at vacuum up to 24 in Hg. It features a grey iron enclosure and housing, operates on a single-phase 115V AC power supply with a power consumption of 0.19 kW and delivers 0.25 hp output power. The pump has an inlet and outlet both sized at 1/4 in with female NPT connections and includes thermal protection to guard against overheating. With a maximum operating temperature of 104°F and a minimum operating temperature of 33.8°F, Operating temperature range: 33.8°F to 104°F. The pump's sound level is rated at 60 dBA and it weighs 31 lb.
Key Features:
- - Pump Type: Rotary Vane
- - Maximum Vacuum: 24 in Hg
- - Power Source: Corded Electric, 115V AC single phase, 0.19 kW
- - Output Power: 0.25 hp
- - Inlet/Outlet Size and Type: 1/4 in female NPT connections
- - Housing and Enclosure Material: Grey Iron
- - Duty Cycle: Continuous
- - Thermal Protection: Yes
- - Maximum Operating Temperature: 104 Degrees F
- - Minimum Operating Temperature: 33.8 Degrees F
- - Sound Level: 60 dBA
- - Weight: 31 lb
- - Expected service life: 4,000 hours under continuous operation
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 31.95
