Piston Air Compressor, Size 1/4", 1725 RPM MPN:1HAB-11T-M100X
Piston Air Compressor, Size 1/4", 1725 RPM
This versatile 1-cylinder piston pump is ideal for a variety of applications, including pneumatic tool operation, air line cleaning, and laboratory equipment use. Its oilless design eliminates the need for lubrication, making it a low-maintenance option for applications where oil contamination is a concern. The pump's compact size and lightweight design make it easy to integrate into existing systems, while its high-pressure output and free air flow rate ensure efficient operation. Suitable for use in a range of industries, including manufacturing, healthcare, and research, this pump is a reliable and efficient solution for a variety of air-powered applications.
Top product features:
- Piston Air Compressor: The product uses a piston air compressor to generate compressed air.
- Oilless Lubrication: The product features oilless lubrication, allowing for maintenance-free operation.
- Maximum Continuous Pressure of 100 psi: The product can maintain a continuous pressure of 100 psi, enabling reliable operation in various applications.
Top product applications:
- Air conditioning and refrigeration systems
- Medical equipment and laboratory instruments
- Industrial manufacturing and assembly lines

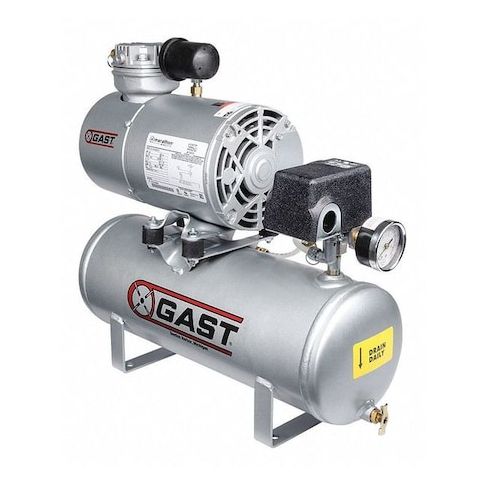

The Gast 1HAB-11T-M100X is an oil-free, single-cylinder piston air compressor with a reciprocating design. It operates on 115V AC single-phase power at 60 Hz at a rated 0.12 hp output. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 1.3 cfm, and a maximum continuous pressure of 100 psi. It has a maximum speed of 1,725 RPM, a full-load current of 3.8 A, and a measured sound level of 70 dBA. The operating temperature range is 32 to 104°F. Construction includes an aluminum cylinder, an induction motor, and stainless steel valves. Enclosure type is clean dust free. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 17.53 x 8.3 x 16.66 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 16,000 hr.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.30
- Package Width: 16.70
- Package Height: 20.30
- Package Weight: 60.00
Product info last updated on February 3, 2026 2:19am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
