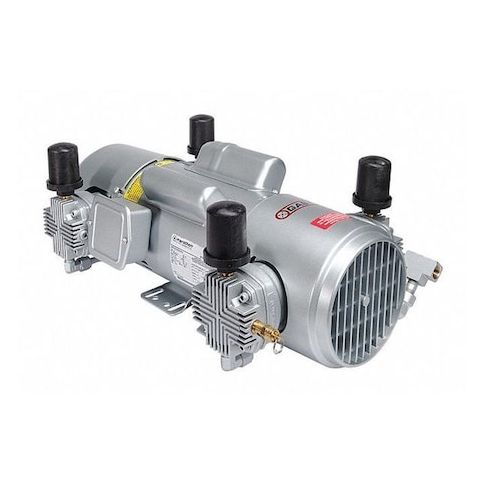

Piston Air Compressor, Size 3/8", 1725 RPM MPN:7HDD-10-M750X
Piston Air Compressor, Size 3/8", 1725 RPM
The Gast Standard 7Hdd-10-M750X Piston Pump is a reliable and efficient air compressor designed for a variety of applications, including pneumatic tools, air-powered machinery, and laboratory equipment. With its 4-cylinder design and 1.5 horsepower output, this pump provides a free air flow rate of 9.1 cfm and a maximum continuous pressure of 100 psi. Its oilless lubrication system eliminates the need for maintenance and reduces downtime. Suitable for use in a range of industries, including manufacturing, healthcare, and research, this pump is a versatile and cost-effective solution for businesses and organizations requiring reliable air compression.
Top product features:
- Piston Air Compressor design allows for oilless lubrication
- 4-cylinder design provides high output power
- Maximum Continuous Pressure of 100 psi enables reliable operation
Top product applications:
- Air Tool Applications
- Air powered tools such as sanders, grinders, and drills
- Pneumatic tools for industrial and manufacturing settings
The Gast 7HDD-10-M750X is an oil-free, four-cylinder piston air compressor with a reciprocating design. It operates on 115/208 to 230V AC single-phase power at 60 Hz at a rated 1-1/2 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 9.1 cfm, and a maximum continuous pressure of 100 psi. It has a maximum speed of 1,725 RPM, a full-load current of 12.15 A, and a measured sound level of 76 dBA. The operating temperature range is 41 to 104°F. Construction includes an aluminum cylinder, a capacitor-start motor, and stainless steel valves. Enclosure type is clean dust free. Air connections are 3/8 in NPT inlet and outlet. Overall dimensions are 21 x 11.98 x 8.4 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 16,000 hr.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 28.20
- Package Width: 17.50
- Package Height: 13.00
- Package Weight: 50.00
Product info last updated on February 15, 2026 4:43pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
